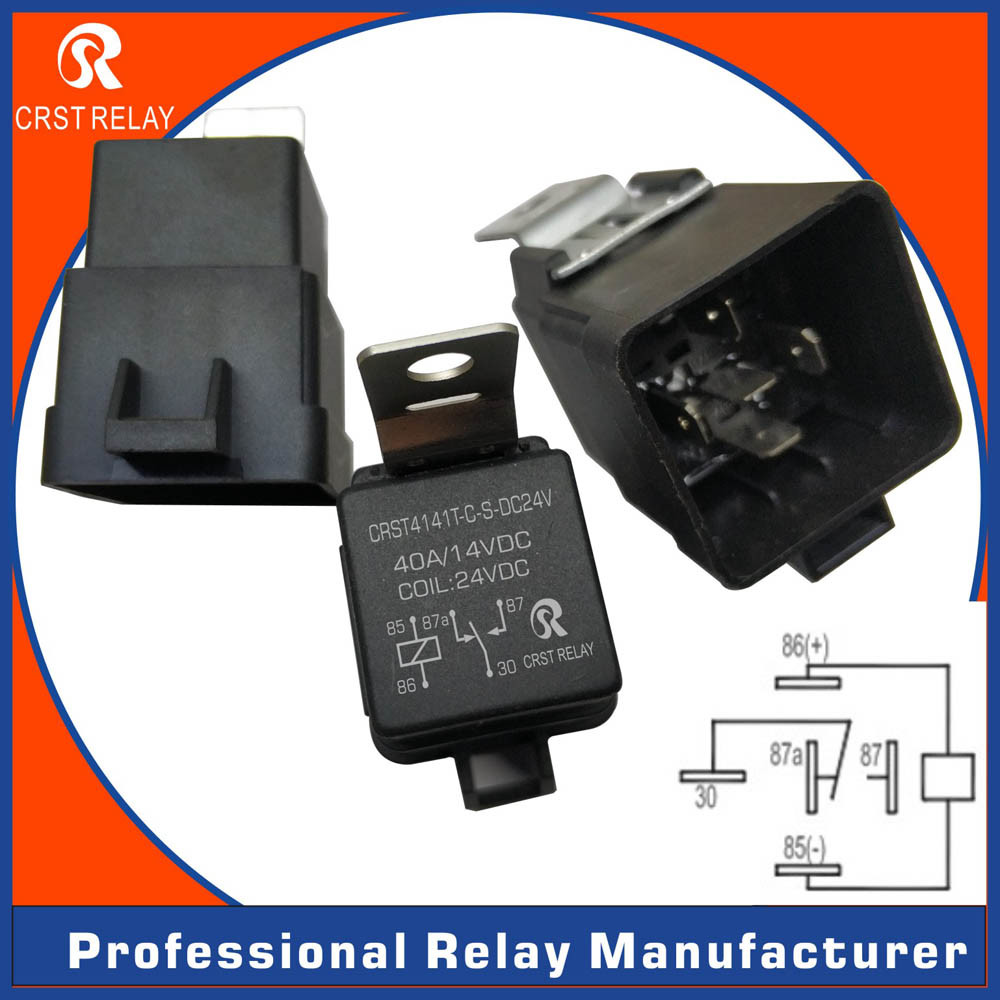

China Crst4141t 12 Volt Automotive 12V Changeover 40A 14VDC 5pin Smart Headlight Car Relay with Socket

Product Description

CRST4141T

Features
1, Small Size and light weight. 2, Contact load capacity up to 40A. 3, Suitable for automobile and lamp accessories application. 4,PC Board mounting and direct insert mounting available.
Ordering information
CRST 4141T--C-S-DC12V 1 2 3 4
1,Part number: CRST4141T 2, Contact arrangement:A:1A;B:1B;C:1C 3, Enclosure: S:Sealed type; Z:Dust cover 4, Coil rated voltage(V):DC:12,24 5, Terminals: P:PCB Type; Nil: Plug in type 6, Coil transient suppression: R:with Resistance; Nil: Standard
Contact data
Contact Arrangement					1A 1B 1C
Contact Material					AgNi, AgSnO_2,AgCdO
Conatct Rating(Resistive)					40A/14VDC
Max.Switching Power					560W
Max.Switching Voltage					30VDC Max.Switching Current:60A
Contact Resistance or Voltage Drop					≤50mΩ
Operation Life			Electrical		10⁵
			Mechanical		10⁷
Coil Parameter (23ºC)
Coil voltage(VDC)		Coil Resistance Ω±10%		Pick up Voltage VDC(Max) (75% of rated voltage)	Release voltage VDC(Min) (10% of rated voltage)	Coil power consumption (W)	Operate Time (mS)	Release Time (mS)
Rated	Max
12	15.6	90.0		9.0	1.2	1.6	≤10	≤10
24	31.2	360		9.0	1.2
12	15.6	80.0		9.0	1.2	1.8
24	31.2	320		18.0	2.4

Caution:1,The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2,Pick up and release voltage are for test purposes only and are not be used as design criteria.

Operation condition
Insulation Resistance		100MΩ (500VDC)
Dielectric Strength	Between Contacts	500VAC
	Between Contacts and Coil	500VAC
Shock Resistance	Functional	20G
	Destructive	200G
Vibration Resistance		10~55Hz Double amplitude 1.5mm
Ambient Temperature		-40~+125ºC
Relative Humidity		85%(at 40ºC)
Unit weight		Approx.32.5g
