Unit TypeAlternatorPart TypeUNITVoltage12RotationCCWAmperage120Pulley ClassS6RegulatorIRFan TypeIFManufacturerBOSCHBriefVOLVO S60 2.3L 2001-04VOLVO S60 2.4L 2001VOLVO S80 2.8L 1999-02VOLVO S80 2.9L 1999-01VOLVO V70 2.4L 2001-046-GROOVE PULLEY 56......
| Unit Type | Alternator |
| Part Type | UNIT |
| Voltage | 12 |
| Rotation | CCW |
| Amperage | 120 |
| Pulley Class | S6 |
| Regulator | IR |
| Fan Type | IF |
| Manufacturer | BOSCH |
| Brief | VOLVO S60 2.3L 2001-04 VOLVO S60 2.4L 2001 VOLVO S80 2.8L 1999-02 VOLVO S80 2.9L 1999-01 VOLVO V70 2.4L 2001-04 6-GROOVE PULLEY 56mm OD ADDL INFO: N. AMERICAN & EUROPEAN APPLICATIONS SEARCH: 563285 (SPECIAL 180 AMP VERSION) |

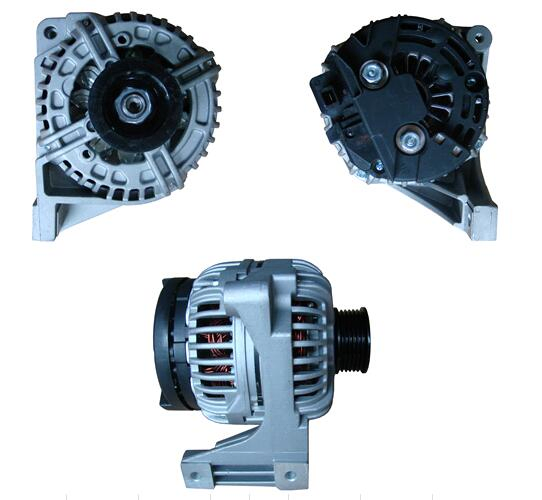

| Detailed | This is a 120A Bosch Internal Fan Alternator for the 1999-04 Volvo. This Unit Uses a 6-Groove Pulley. The Thick Mounting Ear Does Not Have the Usual Hole Through It But Rather Has 2 Mounting Holes Drilled on the Flat Side of It. This Unit Looks Like the 13801 Except with Different Internal Parts the 13801 Uses a Clutch Pulley and They Use Different Voltage Regulators (They will Not Interchange). The 140A Version of the 13802 is the 13997. It Has Been Reported That the Rotor Threads (and Rotor Nut) are Left-Hand Rather Than the Conventional Right-Hand Thread (the Alternator is Designed for CCw Rotation). In 3/08 we Broke Out the 0-124-525-018 and Designated it as 491027 as it Has a Conventional Pulley Like the 13802 But Uses the Regulator From the 13801 (According to the Manufacturer). |
| MFG# | MFG NAME |
|---|---|
| ABO0210 | ARROWHEAD |
| 13802 | LESTER |
| 220-5050 | PIC |
| 334-1347 | AC DELCO |
| 13802 | BBB |
| 13802 | BBB NEW |
| 186-0946 | BECK ARNLEY |
| 0-124-515-017 | BOSCH |
| 112078 | CARGO |
| A-6366 | DIXIE |
| 10551 | EXCEL |
| LRA01817 | LUCAS ELECTRICAL EUROPE |
| 47-3505 | MINNPAR |
| 13802 | MPA |
| 213-9387 | NAPA POWER PREMIUM PLUS |
| 13-9387 | NAPA POWER SUPREME |
| A2802 | USA INDUSTRIES |
| 8111001-7 | VOLVO |
| 9442841 | VOLVO |
| 9442841-4 | VOLVO |
| 1-2244-11BO | WAI |
| 90-15-6360 | WILSON |
| 90-15-6360 | WILSON NEW |
| ALT10372 | WOOD AUTO |
| 12068 | WORLDWIDE |
| MAKE | TYPE | MODEL | YEAR | ENGINE |
|---|---|---|---|---|
| VOLVO | Auto and Light Truck | S60 | 2001 | 2.3L |
| VOLVO | Auto and Light Truck | S60 | 2001 | 2.4L |
| VOLVO | Auto and Light Truck | S60 | 2002 | 2.3L |
| VOLVO | Auto and Light Truck | S60 | 2003 | 2.3L |
| VOLVO | Auto and Light Truck | S60 | 2004 | 2.3L |
| VOLVO | Auto and Light Truck | S80 | 1999 | 2.8L |
| VOLVO | Auto and Light Truck | S80 | 1999 | 2.9L |
| VOLVO | Auto and Light Truck | S80 | 2000 | 2.8L |
| VOLVO | Auto and Light Truck | S80 | 2000 | 2.9L |
| VOLVO | Auto and Light Truck | S80 | 2001 | 2.8L |
| VOLVO | Auto and Light Truck | S80 | 2001 | 2.9L |
| VOLVO | Auto and Light Truck | S80 | 2002 | 2.8L |
| VOLVO | Auto and Light Truck | V70 | 2001 | 2.4L |
| VOLVO | Auto and Light Truck | V70 | 2002 | 2.4L |
| VOLVO | Auto and Light Truck | V70 | 2003 | 2.4L |
| VOLVO | Auto and Light Truck | V70 | 2004 | 2.4L |
| AEP Number | AEP (OEM) | PART TYPE |
|---|---|---|
| BRG0007 | BF00M990405 | BEARING |
| BRG0016 | 35-4000E | BEARING |
| BRG0078 | BF00M990434 | BEARING |
| BEARING RETAINER | ||
| ABO2000 | CASTING - D.E. | |
| ABO1616 | COVER - RECTIFIER | |
| HDW5509 | NUT - ROTOR | |
| PLUG CODE | ||
| ABO5026 | PULLEY | |
| ABO1110 | RECTIFIER | |
| ABO6070 | BF00MA45211 | REGULATOR w/BRUSHES |
| ABO3027 | ROTOR | |
| ABO3502 | SLIP RING | |
| ABO4035 | STATOR | |
| TEST LEAD | ||
| THRU BOLT |
