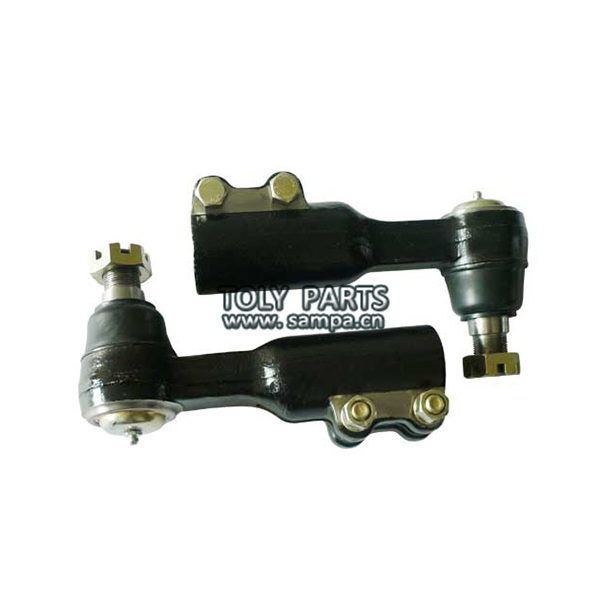

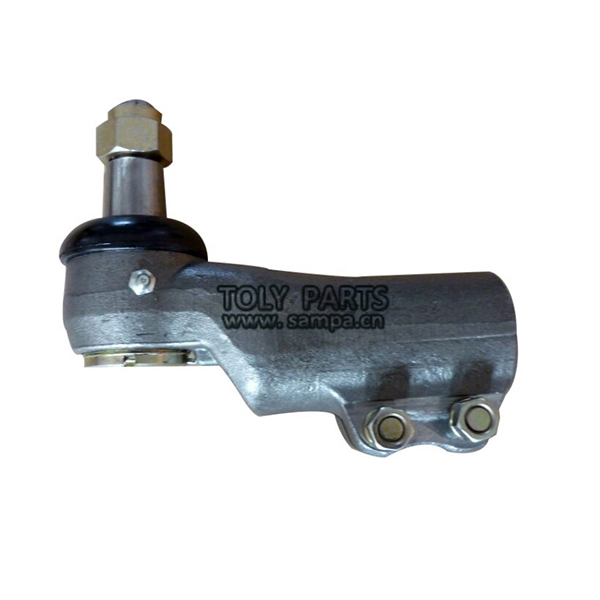

Steering Tie Rod End for Isuzu 1- 43150 -630-0 Rh 1- 43150 -631-0 Lh
Steering tie rod end for ISUZU 1-43150-630-0 RH 1-43150-631-0 LH 1-43150-801-0 RH 1-43150-802-0 LHL=171.5 M56*1.5 M24*2ISUZU 10PE1 1-43150-790-0 RH 1-43150-791-0 LHL=172 M50*1.5 M24*1.5ISUZU 10 PC11-43150-856-0L=220 M58*1.5 M24*1.5ISUZU......
Send Inquiry
Product Description
| 1-43150-801-0 RH 1-43150-802-0 LH | L=171.5 M56*1.5 M24*2 | ISUZU 10PE1 |
| 1-43150-790-0 RH 1-43150-791-0 LH | L=172 M50*1.5 M24*1.5 | ISUZU 10 PC1 |
| 1-43150-856-0 | L=220 M58*1.5 M24*1.5 | ISUZU 51L |
| 1-43150-630-0 RH 1-43150-631-0 LH | L=172 M36*1.5 M24*1.5 | ISUZU |
| 1-43150-630-0 RH 1-43150-631-0 LH | L=169.5 M50*1.5 M24*2 | ISUZU CXZ 10 PC1 |
Components | Material 1 | Material 2 | Material 3 |
Ball housing
| 45# steel Hardening and tempering | 45# steel | Screw-thread steel (35# steel) |
Ball pin | 40Cr Hardening and tempering | 40Cr | Screw-thread steel (35# steel) |
Ball cup | Carbonitriding | Hardening and tempering | Nylon |
Rear cover | SGCC | SGCC | SPHC SPHE |
Dust cover | Rubber | Polyurethane | Plastic |
Spring | 65Mn | 65Mn | 60Si2Mn |
Nut | 45# steel hardening and tempering | 45# steel | Screw-thread steel (35# steel) |
Split pin | A3 gold-plate | A3 plated silver | A3 plated silver |
Glib | 90° | 135° | 180° |
