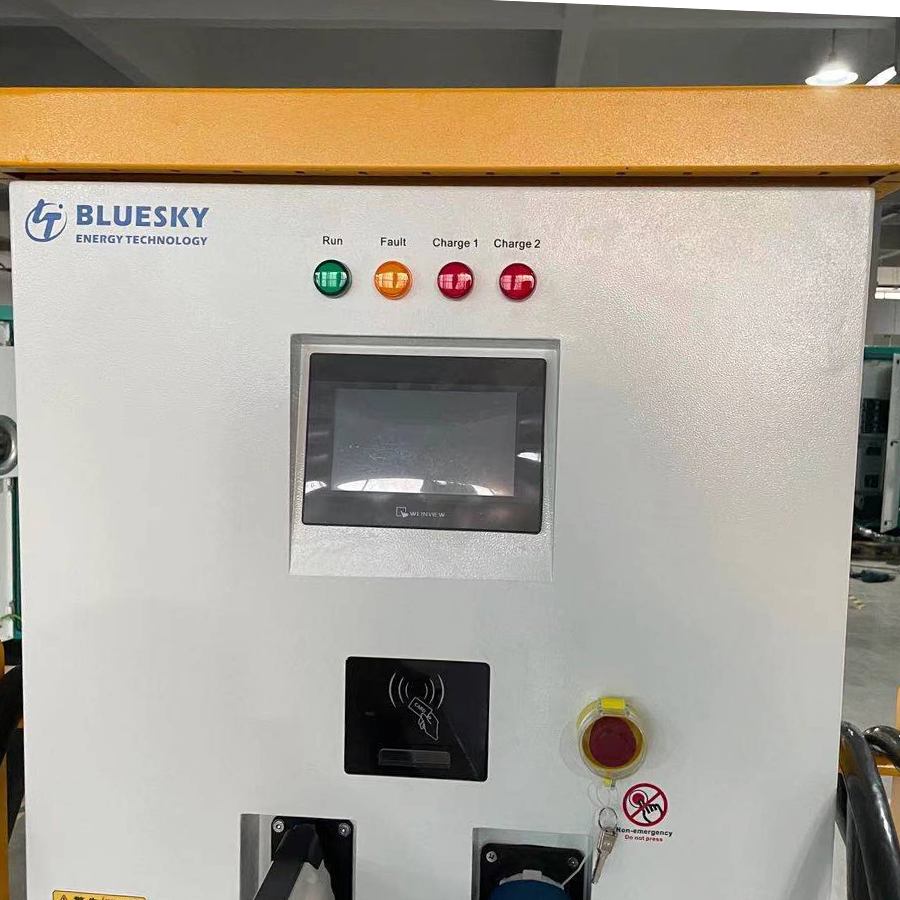

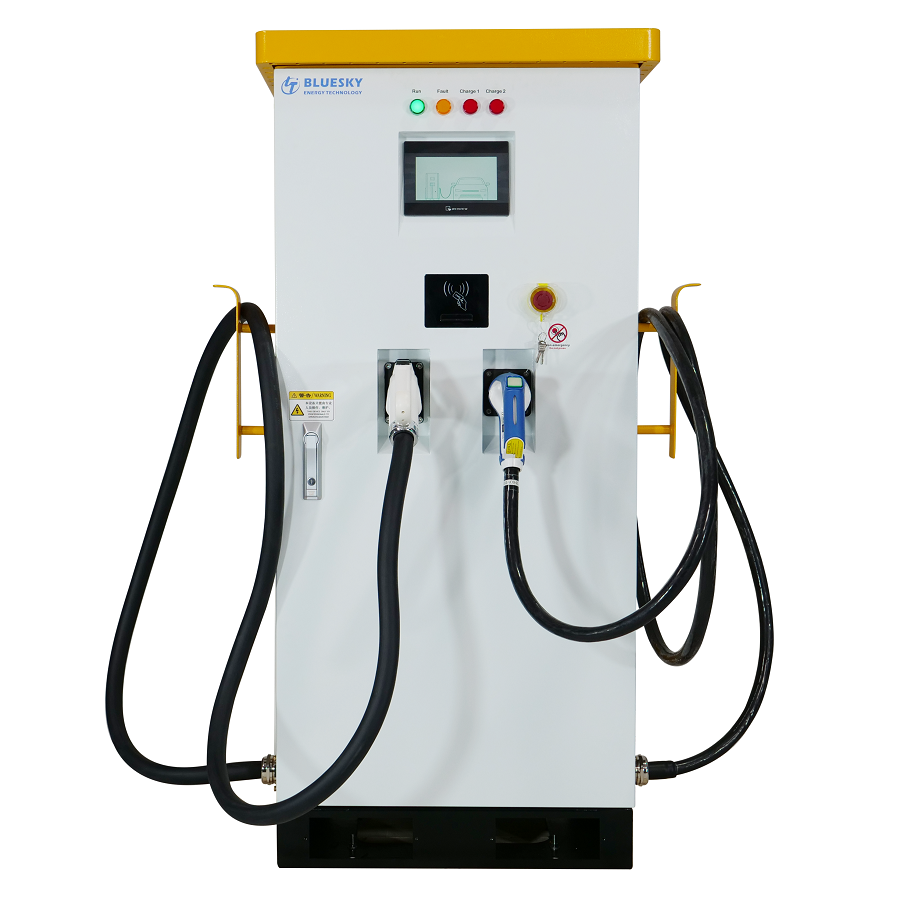

120kw Chademo Double Connectors DC Fast EV Charger Evse Electric Car Charging

General specifications

Environment

Indoor / outdoor

Operating temperature

,-20 oC to +50 oC(de-rating characteristic applies) Option: -35 oC to +50 oc

Storage temperature

,-40 oC to +70 oC

RFID system

ISO/IEC14443A/B, ISO/IEC15693, FeliCa 1, NFC reader mode, LEGIC Prime & Advant

Payments

Smart Card, Server based Online Payments or equivalent

Network connection

GSM / CDMA / 3G modem, 10/100 Base-T Ethernet

Interaction Display

Full-color  (7 in 800x480 TFT ) LCD display for driver interaction

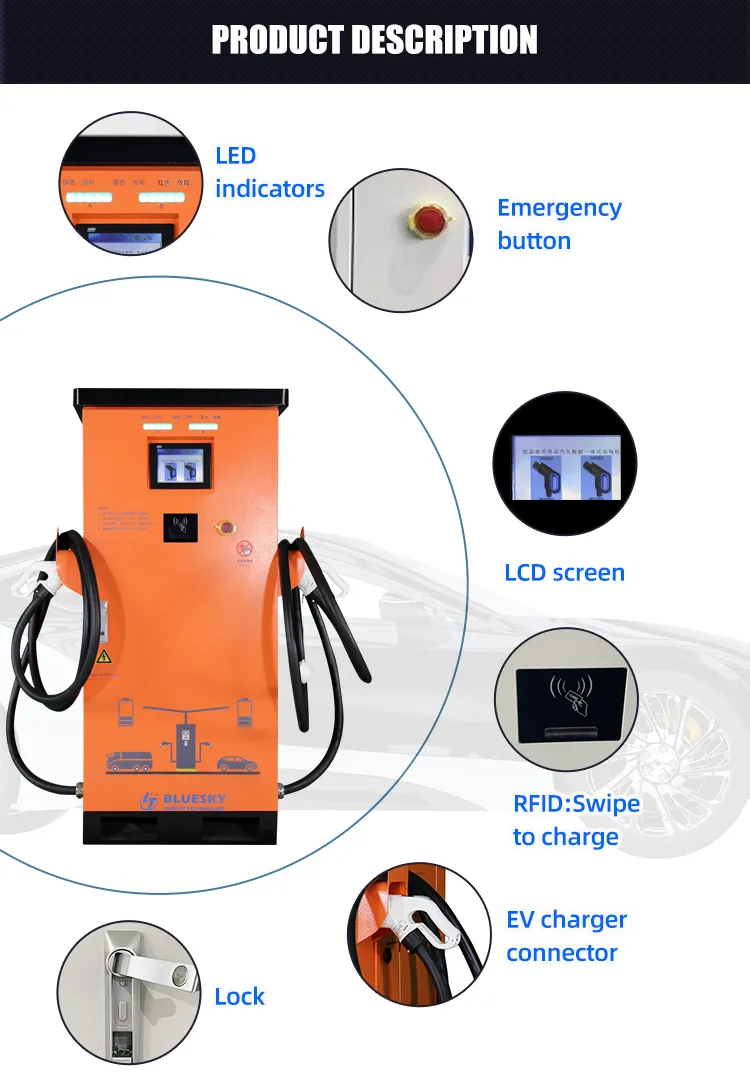

Visual Indicators

Error indication, Presence of input supply indication, Charge process indication and other relevant information

safety protection

Over current, under voltage, over voltage, Residual current, Surge protection, Short circuit, Earth fault at input and output, Input phase reversal, Emergency shut-down with alarm, Over temperature, Protection against electric shock

Push Button

Mushroom type emergency stop switch (Red)

Supported Communication Protocols

OCPP1.6

Protection

IP54

Input Chracteristics

AC Supply System

Three-Phase, 5 Wire AC system (3Ph.+N+PE)

Nominal Input voltage

3, 260~530VAC

Input Frequency

50Hz, ±10Hz
