How Do 3D Scanning and Modeling Improve Land Rover Parts Fit?

2026-10-14


A product development engineer receives a complaint from a distributor. The distributor says that a batch of Land Rover Parts for the Discovery 4 front bumper bracket requires drilling to fit. The engineer pulls the original CAD model and compares it with the production drawing. The dimensions match. The problem is not the drawing. The problem is that the original CAD model was created from a hand measurement of a worn original part. The worn part had a bend of 2 mm that was not corrected in the model. The production parts inherited the bend, and the fit was compromised. The solution was to re-scan the original part on a new vehicle and rebuild the model from the point cloud. This guide explains how 3D scanning and modeling eliminate fit problems in aftermarket Land Rover Parts.

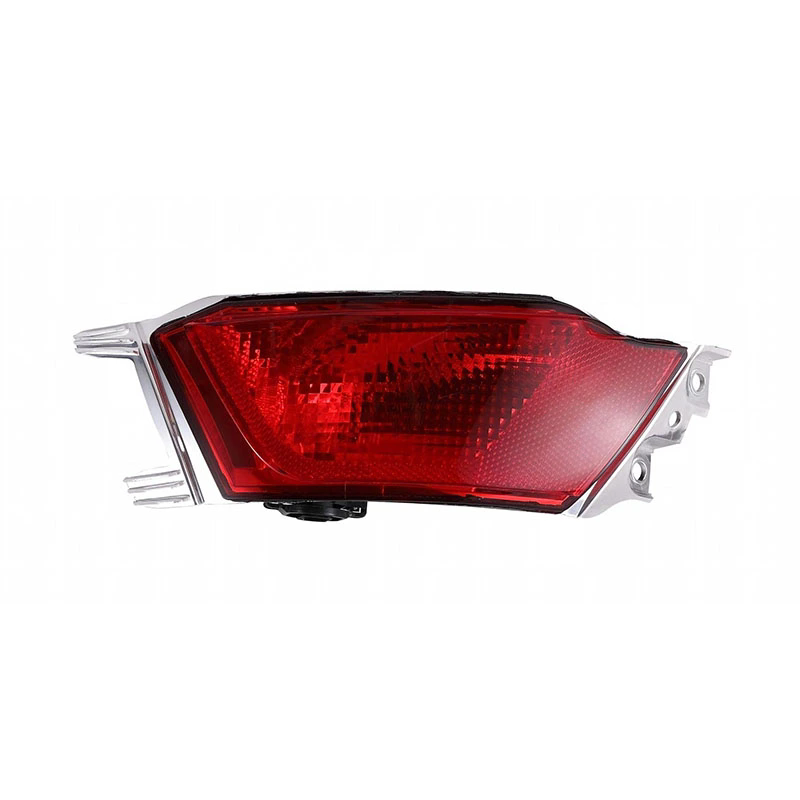

Rear Fog Lamp LR095708 LR095709


1. Why Is Hand Measurement Insufficient for Land Rover Parts Development?

Hand measurement, using calipers and micrometers, can capture the basic dimensions of a Land Rover Parts component. But it cannot capture the complex curves, the draft angles, or the subtle bends that are present in a casting or a stamping. These features are critical for fit. A bracket that is designed from hand measurements may fit on the bench but not on the vehicle. The table below compares the information captured by hand measurement and 3D scanning.

Feature Hand measurement 3D scanning
Basic dimensions Yes Yes
Freeform curves No (approximated) Yes (full point cloud)
Draft angles No Yes
Surface profile No Yes (0.05 mm accuracy)
Weld distortion No Yes (captured in scan)
Time per part 2 – 4 hours 0.5 – 1 hour

In our factory, we use a handheld blue light scanner with a volumetric accuracy of 0.02 mm. The scanner captures 1.5 million points per second and produces a complete point cloud of the part. The point cloud is then processed to remove noise and align it with the vehicle coordinate system. Aori Auto Parts has been using 3D scanning for Land Rover Parts development for over 8 years.


2. How Is the Point Cloud Converted Into a Usable CAD Model?

The point cloud is not a CAD model. It is a dense set of coordinates. To create a CAD model, the engineer must extract the design intent from the point cloud. This involves fitting planes, cylinders, and freeform surfaces to the point data. The engineer must also identify the features that are critical for fit, such as mounting holes, locating pins, and mating surfaces. The table below shows the steps in the point cloud to CAD conversion process.

Step Action Software tool Output
1 Noise removal and alignment Geomagic Design X Clean point cloud in vehicle coordinates
2 Feature extraction Geomagic Design X Planes, cylinders, and holes
3 Surface fitting SolidWorks or NX Freeform surfaces
4 Solid modeling SolidWorks or NX Parametric CAD model
5 Tolerance analysis 3DCS or CETOL Fit prediction and tolerance stack-up

The tolerance analysis is the most critical step. It predicts how the part will fit when the manufacturing tolerances are applied. If the tolerance stack-up exceeds the allowable gap, the design must be adjusted. In our factory, we use a 3D tolerance analysis tool that simulates the assembly of the part with the vehicle body. This allows us to identify potential interference before the part is manufactured. Zhejiang Aori Auto Parts Co., Ltd. has reduced the fit-related return rate for Land Rover Parts from 8 percent to less than 1 percent by using this process.


3. How Does the Manufacturing Process Affect the Final Fit?

Even a perfect CAD model can produce a poorly fitting part if the manufacturing process is not controlled. For injection-molded Land Rover Parts, the shrinkage of the plastic must be compensated in the mold. For stamped parts, the springback of the metal must be compensated in the die. For cast parts, the thermal contraction must be compensated in the pattern. The table below shows the typical compensation factors for different manufacturing processes.

Process Material Typical compensation Effect on fit
Injection molding ABS 0.5 – 0.7% shrinkage Critical for hole positions
Injection molding PA66-GF30 0.3 – 0.5% shrinkage (anisotropic) Critical for warpage
Stamping Steel 1 – 3% springback Critical for bend angles
Die casting Aluminum 0.4 – 0.6% shrinkage Critical for bore diameters

Manufacturing tip: The compensation factor must be verified by producing a trial part and measuring it on the same 3D scanner that was used for the original scan. This closes the loop and ensures that the production parts match the original part. In our factory, we produce a first article sample for every new Land Rover Parts and scan it to verify the dimensions. We do not release the mold or die for production until the first article meets the fit specification.


4. How Does 3D Scanning Improve Fit for Obsolete or Hard-to-Find Parts?

Many Land Rover Parts for older models are no longer available from the original equipment manufacturer. The aftermarket must reverse-engineer these parts from original samples. 3D scanning is the only practical way to capture the geometry of a complex part without a drawing. The table below shows the types of obsolete parts that benefit most from 3D scanning.

Part type Complexity Benefit of 3D scanning
Interior trim clips High (small features) Exact reproduction of snap fits
Bumper brackets Moderate (curved surfaces) Correct fit without drilling
Engine mounts Moderate (vibration isolation) Correct durometer and geometry
Body panels High (large freeform surfaces) Accurate gap and flushness
Lighting housings High (optical surfaces) Correct lens geometry and sealing

In our factory, we have scanned and reproduced over 200 obsolete Land Rover Parts. The process starts with cleaning the original part and scanning it in multiple orientations to capture all surfaces. The point cloud is then processed and converted to a CAD model. The model is used to produce a mold or a die. The first article is scanned and compared with the original point cloud. The deviation must be less than 0.2 mm for the part to be approved. Zhejiang Aori Auto Parts Co., Ltd. provides a deviation report with every obsolete part reproduction.


Frequently Asked Questions About 3D Scanning and Modeling for Land Rover Parts

Question 1: How accurate is 3D scanning compared to a CMM?
Answer: A handheld 3D scanner has a volumetric accuracy of 0.02 to 0.05 mm, depending on the size of the scan area. A coordinate measuring machine (CMM) has an accuracy of 0.005 to 0.01 mm. The CMM is more accurate, but it is slower and requires the part to be fixtured. A 3D scanner is faster and can capture the entire surface in one setup. For Land Rover Parts development, the 3D scanner is accurate enough because the fit tolerances are typically 0.2 to 0.5 mm. The scanner is used to create the CAD model, and the CMM is used to verify the production parts. In our factory, we use both: the scanner for reverse engineering and the CMM for first article inspection. Zhejiang Aori Auto Parts Co., Ltd. provides both services for our customers.
Question 2: Can 3D scanning capture the internal features of a part?
Answer: A standard handheld 3D scanner cannot capture internal features because the line of sight is blocked. To capture internal features, such as the inside of a tube or a cavity, a different technology is required. A computed tomography (CT) scanner can capture internal features with high accuracy. An articulated arm with a probe can also capture internal features, but it is slower. For Land Rover Parts, the most common internal features are the mounting holes and the threaded inserts. These can be captured with a probe or by using a scanner with a small probe attachment. In our factory, we use a portable CMM arm with a touch probe for internal features. The data is merged with the external scan data to create a complete model.
Question 3: What is the typical lead time for developing a new Land Rover part using 3D scanning?
Answer: The lead time depends on the complexity of the part and the manufacturing process. For a simple bracket that is stamped or molded, the process takes 4 to 6 weeks. This includes scanning, CAD modeling, tolerance analysis, mold or die design, first article production, and first article inspection. For a complex part with multiple components, the lead time is 8 to 12 weeks. In our factory, we provide a project schedule with each order. We also offer a rapid prototyping service that uses the CAD model to produce a 3D-printed sample for fit verification before the mold is cut. This reduces the risk of a costly mold correction. Zhejiang Aori Auto Parts Co., Ltd. has a dedicated reverse engineering team that handles all Land Rover Parts development projects.

Summary for Product Development Engineers and Aftermarket Suppliers

3D scanning and modeling improve the fit of Land Rover Parts by capturing the true geometry of the original part, including freeform curves and weld distortion. The point cloud is converted to a CAD model with tolerance analysis to predict fit. The manufacturing process is compensated for shrinkage and springback. For obsolete parts, 3D scanning is the only practical way to reproduce the part without a drawing. By using this process, aftermarket suppliers can achieve a fit that is equal to or better than the original equipment. Zhejiang Aori Auto Parts Co., Ltd. has been using 3D scanning for Land Rover Parts development for over 8 years and provides full deviation reports for all of our products.
