How Does a Chassis Dynamometer Improve Vehicle Performance Testing?

1. Understanding a Chassis Dynamometer

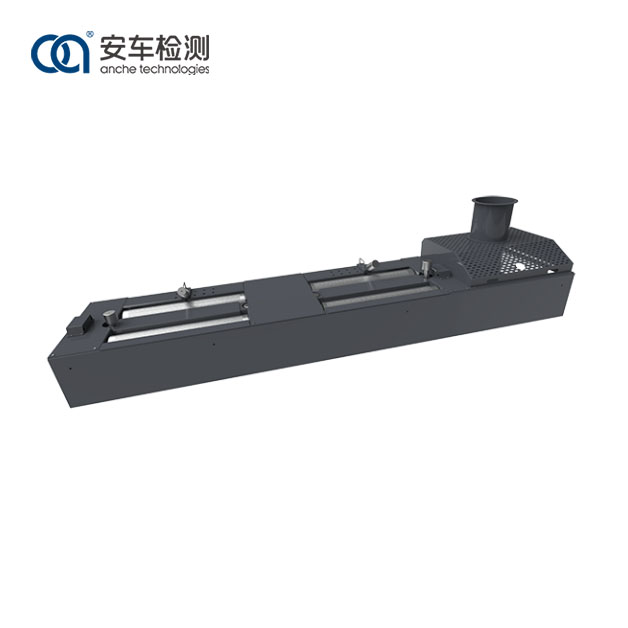

A chassis dynamometer, often called a chassis dyno, is a specialized testing system that measures a vehicle's performance while its wheels drive rollers or another controlled loading mechanism. Instead of measuring an engine separately on an engine dynamometer, a chassis dynamometer evaluates the vehicle through its tires, drivetrain, and associated mechanical systems.

Depending on its configuration, the equipment can measure tractive force, wheel power, wheel torque, vehicle speed, and other parameters. When integrated with suitable sensors and environmental monitoring equipment, it can also support fuel consumption studies, emissions testing, thermal evaluations, and drive-cycle simulations.

The key advantage is that testing takes place with the vehicle operating as a complete system. This helps engineers understand how the engine or electric motor, transmission, tires, electronic controls, and auxiliary systems interact under controlled conditions.

Why does chassis dynamometer testing matter?

Real-world road testing is essential for vehicle development, but it can be affected by traffic, weather, road surfaces, gradients, and driver behavior. A properly configured chassis dynamometer creates a more controlled environment in which engineers can repeat operating conditions and compare results.

• Vehicle development: Evaluate acceleration, power delivery, drivetrain performance, and thermal behavior.
• Emissions assessment: Support regulated test procedures when the dynamometer, sampling equipment, and laboratory meet the applicable requirements.
• Electric vehicle research: Assess motor response, regenerative braking behavior, energy consumption, and battery-related performance under defined conditions.
• Quality control: Compare vehicles or components against established performance benchmarks.
• Calibration and diagnostics: Investigate control strategies, power losses, abnormal operating behavior, and repeatability issues.

2. How a Chassis Dynamometer Works

The operating principle of a chassis dynamometer is based on measuring the interaction between the vehicle's driven wheels and the test system. The dynamometer establishes a controlled load, measures the response, and converts the collected data into useful performance information.

Step 1: Position and secure the vehicle

The vehicle is driven or moved onto the dynamometer, with its tires correctly positioned on the rollers or other specified test interface. Technicians check tire condition, inflation pressure, vehicle alignment, and restraint points before beginning the test.

Correct positioning is particularly important for all-wheel-drive vehicles, where front and rear axles may need to operate in a coordinated manner. Incorrect setup can create drivetrain stress, unstable operation, or misleading measurements.

Step 2: Establish the test conditions

The operator configures the test procedure, vehicle parameters, target speed profile, loading characteristics, and measurement channels. Depending on the application, the system may simulate road-load resistance, a constant-speed condition, an acceleration run, or a prescribed driving cycle.

Road-load simulation may account for aerodynamic drag, rolling resistance, and other resistance components. The required settings should come from the relevant test procedure, validated vehicle data, or an appropriate engineering method rather than arbitrary estimates.

Step 3: Measure force, speed, and rotational response

As the wheels rotate the rollers, the dynamometer measures mechanical response using its load-control and sensing systems. Common measurement channels include roller speed, braking force or torque, rotational speed, and environmental variables.

Different designs use different measurement arrangements. Eddy-current systems use electromagnetic braking, while AC or DC electric dynamometers can provide controlled loading and, in suitable configurations, drive the rollers as well.

Step 4: Calculate power and torque

Power can be calculated from measured force and vehicle speed:

For example, if a system measures a tractive force of 2,000 N at a vehicle-equivalent speed of 20 m/s, the corresponding mechanical power is 40,000 W, or 40 kW. This simplified calculation assumes that the force and speed measurements refer to the same operating point.

Accurate torque and power results depend on the sensor arrangement, calibration, roller characteristics, tire behavior, and data-processing method. Any correction or conversion should be documented so results can be interpreted consistently.

Step 5: Analyze the results

The control software displays measured values, curves, operating conditions, and test status. Engineers can use these results to compare operating points, identify abnormal performance, assess repeatability, and prepare technical reports.

For emissions-related testing, the dynamometer may be integrated with exhaust sampling systems, gas analyzers, particle measurement instruments, and vehicle cooling equipment. The complete test setup must satisfy the requirements of the applicable procedure.

3. Main Types of Chassis Dynamometers

Chassis dynamometers are available in several configurations. The best option depends on the vehicle category, maximum load, required test cycles, laboratory space, measurement objectives, and budget.

Single-roller and twin-roller designs

Roller configuration affects tire contact, vehicle positioning, packaging, and the overall test interface. Single-roller systems generally use a larger roller diameter, while twin-roller designs use two rollers per wheel path.

Neither arrangement is universally superior. Selection should consider tire dimensions, vehicle clearance, maximum speed, traction behavior, measurement requirements, ease of access, and the manufacturer's intended operating conditions.

Which system is appropriate for electric vehicles?

Electric vehicle testing can require rapid torque changes, regenerative braking measurements, low-speed control, bidirectional energy flow, and coordinated axle operation. A dynamometer designed for conventional power measurement may not provide all these functions.

Before purchasing a system for EV applications, confirm its torque and speed envelope, transient response, low-speed capability, power absorption rating, energy regeneration options, and compatibility with the target vehicle architecture.

4. Key Testing Applications

Automotive performance development

Automotive engineers use chassis dynamometers to measure wheel power, acceleration characteristics, torque response, and performance changes following mechanical or software modifications. Controlled conditions make it easier to compare test runs and evaluate whether a design change produces a measurable improvement.

For meaningful comparisons, engineers should keep tire pressure, tire temperature, gear selection, vehicle configuration, ambient conditions, and test procedures consistent.

Emissions and fuel economy testing

Vehicle emissions and energy-consumption tests may require a prescribed speed-time profile and a defined resistance model. A chassis dynamometer reproduces the mechanical portion of the driving conditions, while additional instruments measure exhaust emissions or fuel and energy use.

Regulated testing is more demanding than simply running a vehicle on rollers. The laboratory may need controlled ambient conditions, calibrated analyzers, exhaust dilution equipment, verified road-load settings, and traceable quality-control procedures. Applicable requirements depend on the jurisdiction, vehicle class, and test method.

Electric and hybrid vehicle validation

Hybrid and electric vehicles introduce additional testing challenges because power delivery can change rapidly with battery state of charge, motor temperature, regenerative braking, and control-system behavior.

A suitably equipped chassis dynamometer can help engineers evaluate energy consumption, torque delivery, braking transitions, thermal limitations, and repeatability across operating conditions. Battery safety procedures and electrical isolation requirements must be incorporated into the test plan.

Manufacturing quality control

Vehicle manufacturers and component suppliers may use dynamometer testing as part of production verification, end-of-line inspection, or engineering audits. Repeatable test procedures can reveal unusual noise, inconsistent power delivery, drivetrain defects, and other issues before products reach customers.

Production environments often prioritize short cycle times, automated vehicle identification, standardized reports, and integration with manufacturing execution systems. The equipment must therefore meet both measurement and throughput requirements.

5. How to Select the Right Chassis Dynamometer

Selecting equipment solely on maximum horsepower can lead to a poor investment. A dynamometer must match the complete operating envelope of the intended vehicles and the measurements the laboratory needs to perform.

1. Define the target vehicle range

Identify the vehicle categories, drivetrain layouts, axle configurations, tire sizes, wheelbases, and expected maximum operating speeds. Consider future vehicle platforms as well as current projects.

For heavy vehicles, high-torque applications, or AWD systems, verify load capacity and mechanical compatibility carefully. The maximum rating should cover the intended operating conditions with an appropriate engineering margin.

2. Confirm torque, power, and speed ratings

Power, torque, and speed are related, but they describe different constraints. A system may be capable of handling high power at high speed while being unsuitable for high torque at low speed.

Ask the supplier for the continuous and peak operating ratings, allowable test duration, low-speed limitations, maximum roller speed, and any derating conditions. Confirm that these specifications cover the complete test cycle, not merely a brief peak measurement.

3. Evaluate measurement accuracy and repeatability

Review the accuracy specifications for force, torque, speed, and power, including the measurement range over which each value applies. Ask how calibration is performed, how often it is recommended, and what documentation is supplied.

Repeatability is equally important. A system that produces slightly different results during repeated tests may make small engineering changes difficult to evaluate, even when its individual sensors have good nominal accuracy.

4. Check control and software capabilities

The control platform should support the required test procedures, data acquisition rates, reporting formats, safety interlocks, and external instruments. If automated cycles are needed, verify how speed profiles, road-load simulation, and test abort conditions are managed.

For specialized laboratories, consider data export, network connectivity, user permissions, audit trails, and integration with emissions analyzers or vehicle communication systems.

5. Consider the total cost of ownership

The initial purchase price is only one part of the investment. Installation, civil works, electrical upgrades, ventilation, cooling, software licenses, calibration, maintenance, training, and spare parts can significantly affect long-term costs.

6. Evaluate supplier experience and technical support

A capable supplier should explain the equipment's operating limits, recommend a suitable configuration, provide installation requirements, and help establish appropriate test procedures. Documentation, commissioning support, operator training, and access to replacement parts are important considerations.

When comparing proposals, request a clear specification sheet, a description of included accessories, calibration information, warranty terms, and a defined scope of installation and service.

6. How to Improve Chassis Dynamometer Measurement Accuracy

Even advanced test equipment cannot compensate for poor setup or inconsistent operating procedures. Reliable results depend on the complete measurement chain, including the vehicle, tires, dynamometer, environmental conditions, sensors, and analysis software.

Maintain consistent tire conditions

Tires influence the transfer of force between the vehicle and rollers. Tire pressure, tread condition, temperature, compound, and contact behavior can affect measurements and repeatability.

Use a documented preparation procedure, inspect tires before testing, and apply consistent inflation and warm-up practices appropriate to the vehicle and test method.

Verify calibration and sensor condition

Force, torque, and speed sensors should be checked according to the manufacturer's instructions and the laboratory's quality system. Damaged cables, loose connectors, sensor drift, and incorrect scaling can create misleading readings.

Maintain calibration certificates and records of service, verification checks, software changes, and any adjustments that may affect results.

Control environmental and thermal effects

Ambient temperature, humidity, airflow, vehicle temperature, and dynamometer heating may influence test results. High-load testing also generates heat in tires, brakes, motors, absorbers, and other components.

Use suitable vehicle cooling fans and equipment cooling systems where required. Follow the prescribed stabilization procedure and record environmental data when the test method requires it.

Apply a repeatable test procedure

Document vehicle configuration, test gear, speed profile, loading settings, tire conditions, stabilization time, and the criteria for accepting or rejecting a run. Repeat measurements when results fall outside established tolerances.

Understand drivetrain losses and correction factors

Wheel power is affected by losses throughout the transmission and driveline. It should not be treated as identical to engine or motor shaft power. Estimating drivetrain loss introduces uncertainty unless the method and assumptions are clearly defined.

Likewise, atmospheric correction methods should be applied only when appropriate to the test procedure. Correction factors, units, and reference conditions should be reported transparently to avoid misleading comparisons.

7. Installation and Laboratory Preparation

Proper installation is essential for safety, reliability, and measurement quality. Facility requirements vary with the dynamometer's size, vehicle class, load capacity, and intended testing method.

Prepare the testing area

• Floor and foundation: Confirm structural loading, mounting arrangements, levelness, and vibration considerations.
• Electrical supply: Verify voltage, frequency, grounding, circuit protection, and peak power demand.
• Ventilation: Provide suitable exhaust extraction and fresh-air arrangements for combustion vehicles.
• Cooling: Ensure sufficient airflow and heat rejection for the vehicle and dynamometer.
• Access: Allow safe vehicle entry, operator movement, maintenance access, and emergency evacuation.
• Data infrastructure: Plan computer workstations, instrument connections, network access, and secure storage for test results.

Establish operating and safety procedures

Before commissioning, define vehicle restraint procedures, inspection checklists, maximum operating conditions, emergency-stop functions, and communication methods between the operator and other personnel.

Rotating rollers and wheels create serious entanglement hazards. Appropriate guards, barriers, warning signs, protective equipment, and controlled access should be provided. Vehicles must be secured using approved methods, and personnel should remain outside hazardous areas during operation.

High-voltage vehicles require additional precautions. Only qualified personnel should work on relevant electrical systems, using the isolation, verification, and protective procedures required by the vehicle manufacturer and applicable safety rules.

Commission the system systematically

Commissioning should include mechanical inspection, electrical verification, sensor checks, calibration or verification tests, control-system checks, and confirmation that safety interlocks function correctly. Operators should complete training before performing independent testing.

For laboratories conducting regulated measurements, commissioning should also establish that the complete equipment configuration and operating procedure satisfy the applicable technical requirements.

8. Maintenance and Troubleshooting

Preventive maintenance helps minimize downtime, protect measurement quality, and extend equipment service life. Maintenance intervals should follow the manufacturer's instructions and take account of workload, operating environment, and test severity.

Recommended maintenance checklist

Common problems and possible causes

• Unstable readings: Check sensor connections, tire consistency, vehicle restraint, interference, and data acquisition settings.
• Unexpectedly low power: Review gear selection, vehicle operating condition, roller loading, tire behavior, cooling, and measurement configuration.
• Excessive temperature: Inspect cooling airflow, duty cycle, ventilation, and the relevant component's operating limits.
• Communication failures: Check approved cable connections, interface settings, software configuration, and fault logs.
• Inconsistent repeat tests: Compare warm-up conditions, test timing, vehicle configuration, environmental variables, and correction methods.

Do not bypass safety interlocks or continue operating equipment that shows signs of mechanical damage, abnormal vibration, overheating, or an electrical fault. Stop the test, isolate the equipment where required, and follow the manufacturer's troubleshooting procedures.

9. Developments in Chassis Dynamometer Technology

Modern chassis dynamometers are evolving beyond basic power measurement. Improved control systems, faster data acquisition, integrated vehicle communications, and automated test management are helping laboratories handle more complex vehicle platforms.

More precise transient testing

Advanced electric drive systems can respond rapidly to changes in load. Dynamometers with suitable control bandwidth and torque response can reproduce demanding operating profiles more accurately, supporting development of powertrains and vehicle control systems.

Integration with vehicle data

When properly configured, test systems can combine dynamometer measurements with vehicle bus data, temperature sensors, battery information, and external analyzers. Synchronizing these signals makes it easier to identify the conditions associated with a particular performance change.

Automation and data management

Automated procedures can reduce repetitive operator tasks, standardize test execution, and improve reporting consistency. Structured records also make it easier to compare results across test dates, vehicles, and development stages.

Testing for electrified vehicle platforms

As hybrid and electric vehicles become more diverse, test facilities increasingly need to accommodate multiple drivetrain configurations, regenerative braking, high transient torque, and specialized thermal or electrical safety requirements.

When planning future capacity, laboratories should evaluate flexibility, upgrade paths, software support, and compatibility with emerging vehicle technologies rather than focusing only on immediate requirements.

10. Frequently Asked Questions

11. Make a Better Investment in Vehicle Testing Equipment

A chassis dynamometer is more than a platform for measuring vehicle power. It is a core testing tool that can support vehicle development, quality assurance, drivetrain validation, emissions evaluation, and the transition toward electrified transportation.

Successful implementation depends on matching the equipment to the target vehicles, defining clear measurement objectives, preparing the laboratory correctly, and establishing consistent operating and maintenance procedures. Careful evaluation of load capacity, control performance, measurement quality, software, and technical support can help reduce avoidable costs and improve long-term testing efficiency.
