How Does an Anti-Particle Multi-Stage Control Valve Ensure Optimal Flow Control?

In modern industrial processes, achieving precise flow control is critical for ensuring efficiency, protecting sensitive equipment, and minimizing downtime. Among the many innovations in fluid regulation, the Anti-Particle Multi-Stage Control Valve has become a game-changer in industries where high-pressure drops, abrasive particles, and fluctuating flow conditions create serious challenges.

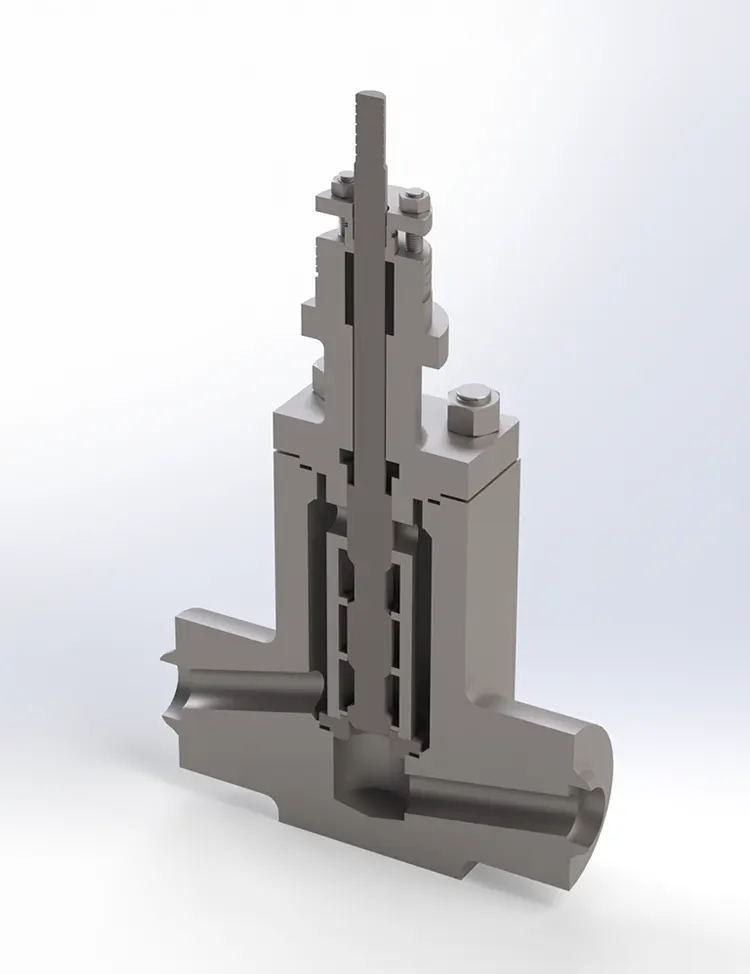

An Anti-Particle Multi-Stage Control Valve is an advanced flow regulation device specifically designed to handle fluids containing solid particles, high-pressure drops, and cavitation risks. Traditional single-stage valves often fail in such demanding environments because the pressure drop happens too suddenly, which creates high-velocity fluid jets, leading to cavitation, erosion, and premature wear.

In contrast, multi-stage control valves distribute the total pressure drop across several stages within the valve trim. This controlled reduction in pressure prevents fluid flashing, minimizes turbulence, and significantly extends valve life. Additionally, the anti-particle design integrates specialized flow passages and protective structures to prevent clogging and wear caused by suspended solids or abrasive contaminants.

Key Benefits at a Glance

• Cavitation Prevention – Gradual pressure reduction eliminates damaging vapor bubble collapse.

• Erosion Resistance – Designed to withstand abrasive particles, ensuring long-term durability.

• Flow Stability – Multi-stage structure delivers precise flow control even under fluctuating conditions.

• Reduced Noise and Vibration – Optimized trim geometry lowers turbulence, keeping noise levels minimal.

• Lower Maintenance Costs – Longer lifespan means fewer replacements and repairs.

Technical Specifications

These specifications illustrate that the valve is built for the most demanding environments, where high-pressure fluids often contain solid impurities that could compromise standard control valves.

How Anti-Particle Multi-Stage Valves Achieve Superior Performance

The performance of an Anti-Particle Multi-Stage Control Valve lies in its internal engineering. Instead of allowing the entire pressure drop to occur across a single throttling point, the design divides the drop into multiple stages. Each stage consists of a specially engineered trim section that carefully channels fluid flow, dissipates energy gradually, and avoids destructive forces.

A. Multi-Stage Trim Design

• Energy Dissipation – High-pressure fluid energy is dispersed step by step, avoiding shock loads on valve internals.

• Controlled Velocity – By limiting velocity within safe ranges, the trim reduces erosion and prevents cavitation damage.

• Anti-Clogging Passages – The internal flow paths are engineered to handle particulate-laden fluids without jamming or restricting flow.

B. Anti-Particle Protection

Industries like petrochemical processing, mining, and power generation frequently deal with fluids containing sand, scale, and other hard particles. A typical control valve may erode rapidly in such conditions, but this specialized valve incorporates:

• Hardened Trims to resist abrasion

• Self-Cleaning Flow Paths to prevent blockages

• Enhanced Surface Coatings for corrosion resistance

C. Noise and Vibration Control

High-pressure drops usually create turbulent flow, resulting in excessive noise and vibration that can damage pipelines and equipment. The multi-stage trim geometry smooths the fluid transition between stages, significantly reducing noise levels and protecting system integrity.

Applications Across Key Industries

The Anti-Particle Multi-Stage Control Valve plays a vital role in sectors where traditional valves fail due to high pressures, abrasive conditions, or risk of cavitation.

A. Oil & Gas Industry

• Wellhead choke control

• Sand-laden gas streams

• Sour service handling with high H₂S content

• Downstream refining processes requiring precise pressure reduction

B. Power Generation

• Boiler feedwater regulation

• Turbine bypass control

• Steam conditioning in ultra-supercritical plants

C. Petrochemical & Chemical Processing

• Handling high-temperature, corrosive fluids

• Accurate flow control in polymer and resin manufacturing

• Preventing cavitation in volatile chemical streams

D. Water & Wastewater Treatment

• Desalination plants managing brine flows

• Sludge lines and slurry handling

• Controlling flows with suspended solids

By optimizing flow control in these demanding scenarios, industries achieve better process stability, higher safety standards, and reduced operating costs.

Common Questions About Anti-Particle Multi-Stage Control Valves

Q1. How does an Anti-Particle Multi-Stage Control Valve prevent cavitation damage?

Answer: Cavitation occurs when fluid pressure falls below its vapor pressure, forming vapor bubbles that collapse violently and damage valve internals. The multi-stage trim design prevents cavitation by distributing the pressure drop across several stages, keeping fluid pressure above the vapor point at each stage. This eliminates bubble formation and ensures longer valve life.

Q2. What makes an Anti-Particle Multi-Stage Control Valve better than conventional single-stage valves?

Answer: Conventional valves expose their internals to sudden pressure drops, leading to erosion, noise, vibration, and frequent maintenance. The multi-stage valve overcomes these issues by:

• Controlling velocity to reduce wear

• Incorporating hardened trims and anti-clogging passages

• Minimizing cavitation and turbulence

• Offering superior performance in high-pressure and particle-laden environments

Why Choose Lozose for Your Control Valve Needs

Selecting the right control valve is critical to maintaining efficiency, reliability, and safety in demanding fluid systems. The Anti-Particle Multi-Stage Control Valve is engineered to meet these challenges, offering unmatched durability, precise flow control, and superior performance in particle-rich, high-pressure environments.

Lozose specializes in designing and manufacturing advanced flow control solutions that meet the rigorous demands of modern industries. With a strong focus on quality, innovation, and customer satisfaction, Lozose ensures that every valve delivers exceptional performance and longevity.

If you're seeking a robust, long-lasting, and highly efficient solution for complex flow conditions, contact us today to learn more about our Anti-Particle Multi-Stage Control Valves and how they can optimize your operations.
