What Is the Difference Between Shielded and Unshielded M12 Industrial Connectors
2026-09-23
In industrial automation and control systems, selecting the right connectivity solution directly impacts signal integrity, operational reliability, and long-term maintenance costs. Reunion specializes in high-performance connectivity components designed for demanding environments, and one of the most frequent technical questions we encounter concerns electromagnetic compatibility. Understanding how shielding affects performance is essential when specifying an M12 series industrial connector for any application, whether it involves precision measurement, high-speed data, or power delivery on the factory floor.

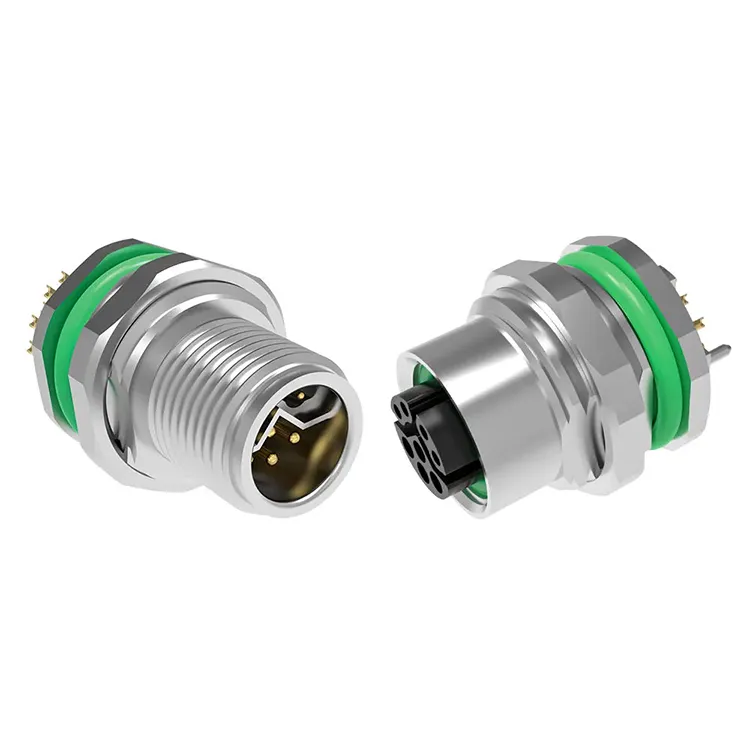

The Fundamental Difference: Construction and Intent
The primary distinction lies in the presence or absence of a conductive shield layer surrounding the signal conductors. An unshielded M12 series industrial connector relies solely on the insulation and the connector housing to protect the signal. A shielded version incorporates a metallic foil or braided sleeve that intercepts external electromagnetic interference (EMI) and prevents the internal signal from radiating outward.
Reunion manufactures both variants to strict tolerances, ensuring that the shielding, when present, is terminated effectively to the connector shell. This termination is critical; a shield that is not properly grounded offers little protection.
Key Performance Comparison
| Feature | Shielded M12 Connector | Unshielded M12 Connector |
|---|---|---|
| EMI Protection | High; blocks external noise and prevents emission | Low; susceptible to nearby motors, drives, and radios |
| Signal Integrity | Excellent for analog, high-frequency, and Ethernet | Adequate for low-frequency digital and power |
| Grounding Requirement | Must be bonded to machine ground | Not required |
| Cable Flexibility | Slightly stiffer due to shield layer | More flexible and lighter |
| Cost | Higher material and assembly cost | More economical |
| Typical Applications | Industrial Ethernet, encoders, sensors, VFD feedback | Proximity sensors, simple actuators, power distribution |
When to Specify Shielded M12 Connectors
Shielded M12 series industrial connector assemblies are mandatory in environments where electromagnetic noise is prevalent. This includes:
-
Industrial Ethernet networks operating at 100 Mbps or 1 Gbps, where crosstalk and external interference corrupt data packets.
-
Analog sensor lines carrying millivolt-level signals, such as thermocouples or strain gauges.
-
Variable frequency drive (VFD) motor feedback systems, where PWM switching generates significant broadband noise.
-
Applications requiring EMC compliance to standards such as IEC 61000-6-2 for industrial immunity.
When Unshielded M12 Connectors Are Appropriate
Unshielded versions remain the correct choice for many cost-sensitive and low-noise applications. They are lighter, more flexible, and easier to route in tight spaces. Reunion recommends unshielded M12 series industrial connector solutions for:
-
Discrete proximity or photoelectric sensors with simple on/off signals.
-
Low-speed digital I/O and relay outputs.
-
Power distribution to actuators and valves where cable length is short.
-
Environments with minimal electromagnetic activity and no sensitive electronics nearby.
Frequently Asked Questions
Can I use an unshielded M12 connector in an Industrial Ethernet application?
No, unshielded connectors do not provide the impedance control and noise rejection required for reliable Ethernet transmission; shielded versions are specified to maintain signal integrity and meet performance standards.
Does the shield need to be grounded at both ends of the cable?
In most industrial installations, grounding the shield at both the connector and the cabinet entry is recommended to create a Faraday cage effect, though ground loop issues must be evaluated by a qualified engineer.
Are shielded M12 connectors more difficult to assemble in the field?
They require more careful preparation because the shield braid must be properly terminated to the connector housing, but Reunion offers field-attachable versions with clear instructions to simplify the process.
Conclusion and Contact Us
Choosing between shielded and unshielded M12 series industrial connector options is a decision that balances signal integrity requirements against cost and flexibility. For noisy industrial environments and high-speed data, shielding is non-negotiable. For simple, low-frequency power and signal tasks, unshielded connectors deliver reliable performance economically. Reunion provides both configurations with full technical documentation and expert support to guide your selection. Contact us today to discuss your specific application and request samples or a quotation tailored to your project.
