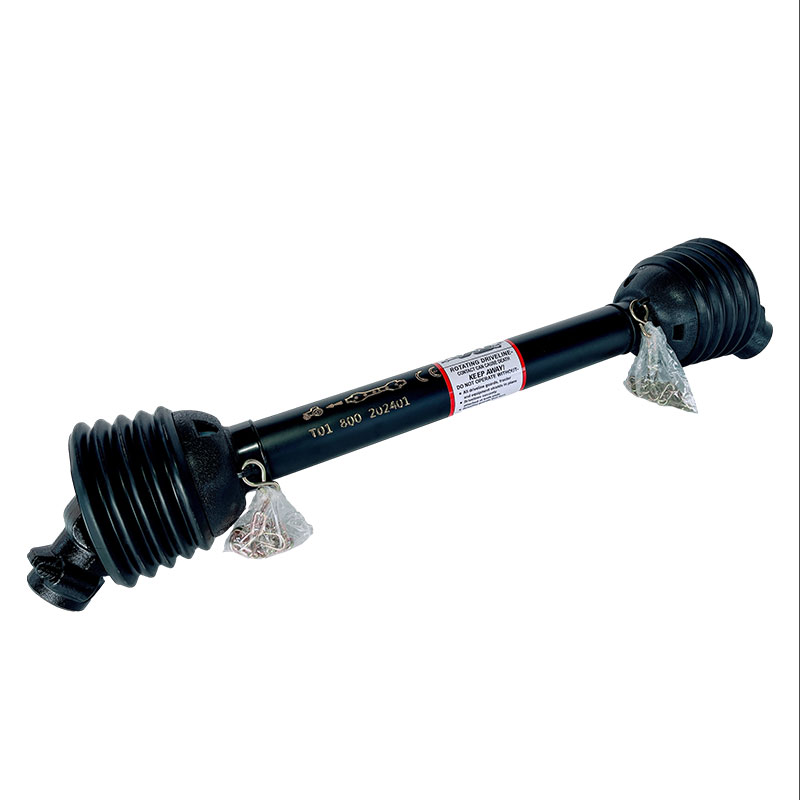

What Is The Maximum Speed And Torque Rating For A Standard PTO Shaft
2025-08-26
When it comes to agricultural and industrial machinery, understanding the limits of your equipment is crucial for both performance and safety. One of the most common questions we hear is about the maximum speed and torque ratings for a standard PTO Shaft. This isn't just a technical detail—it's the foundation of efficient and safe operation.
Generally, standard PTO Shafts are designed for two common speed ratings: 540 RPM and 1000 RPM. The torque rating, however, is not a one-size-fits-all figure. It varies significantly based on the shaft’s design, material, and size. Using a shaft beyond its rated capacity can lead to catastrophic failure, damaging your tractor and implement.
At Minghua Gear, we engineer our PTO Shafts to not only meet but exceed these standard ratings, ensuring a critical safety margin. Our shafts are constructed from high-tensile strength alloy steel and undergo rigorous heat treatment and precision balancing.
Key specifications for our popular series include:
-
Material: High-grade, heat-treated alloy steel.
-
Maximum Torque Capacity: Ranges from 1,200 to 2,500 Nm, depending on the series.
-
Standard Speeds: Certified for both 540 RPM and 1000 RPM applications.
-
Spline Hardness: 55-60 HRC for exceptional wear resistance.
The following table illustrates the robust specifications of two core Minghua Gear PTO Shaft product lines:
| Product Series | Max Speed (RPM) | Max Torque (Nm) | Core Application |
|---|---|---|---|
| MG-540 Heavy Duty | 540 | 2,500 | Large Balers, Rotary Cutters |
| MG-1000 Standard | 1000 | 1,200 | Seeders, Medium-duty Mowers |
PTO Shafts FAQ Common Questions
What happens if I use a 540 RPM shaft at 1000 RPM
Operating a shaft at a speed higher than its rating creates extreme vibration and centrifugal force, leading to potential joint failure, binding, or even a catastrophic breakage that can destroy surrounding equipment.
How do I determine the correct torque rating I need
Check your implement's manual for its maximum power requirement. Calculate the torque by using the formula: Torque (Nm) = Power (kW) * 9550 / RPM. Always select a PTO Shaft with a torque rating higher than this calculated value.
Why do some PTO Shafts have a higher torque rating than others
The torque capacity is primarily determined by the material strength, the diameter of the tubing, and the size and hardness of the splines. Heavier-duty shafts use larger dimensions and higher-grade materials to handle greater power loads.
Choosing the right PTO Shaft is a critical decision for the longevity of your machinery and the safety of your operation. Don't leave it to chance. Contact us today to speak with our technical experts who can help you select the perfect Minghua Gear shaft for your specific needs and ensure you're operating within safe limits.
