Which Riding Issues Can Upside Down Single Adjustable Suspension Solve?
2026-10-15
Article Summary
Many motorcycle, dirt bike and electric bike riders struggle with vague steering feedback, unstable braking dive, limited tuning options, weak fork rigidity and high upgrade costs when using conventional telescopic forks. This blog centers on Upside Down Single Adjustable Suspension developed by Shangxia. We explain its inverted structural principle, core performance advantages, standard technical parameters, suitable vehicle applications, installation guidance and daily troubleshooting tips. This content helps aftermarket retailers, custom bike builders and amateur riders decide if this suspension matches their riding style, reduce unstable handling risks on rough terrain, simplify suspension tuning, and strike a good balance between upgrade budget and riding performance.
1. Introduction: What Is Upside Down Single Adjustable Suspension

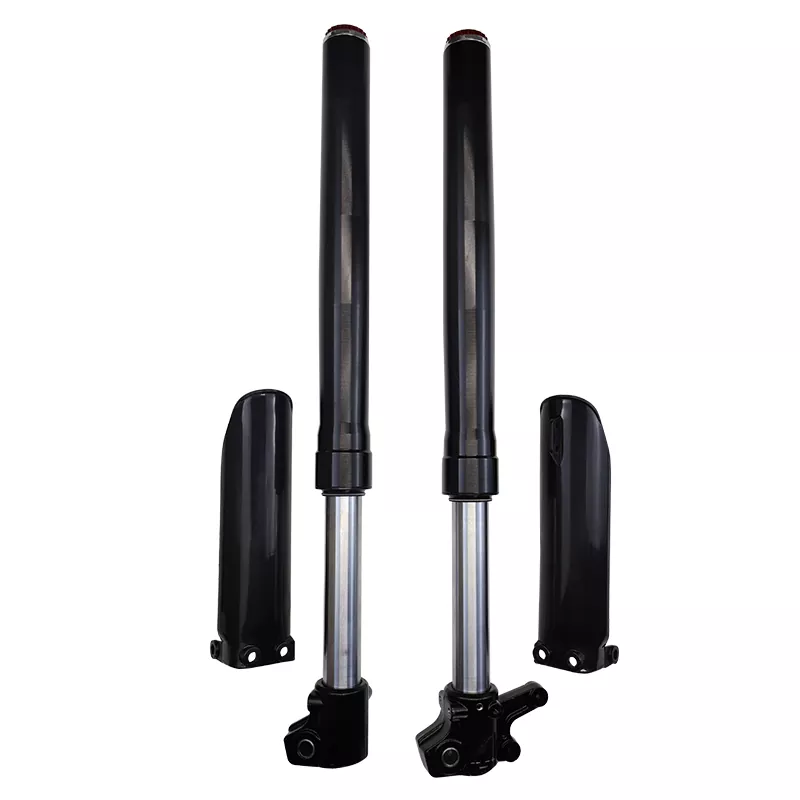

Upside Down Single Adjustable Suspension, also widely known as USD suspension, is an inverted telescopic front fork system. Different from traditional forks where the large outer tube sits near the wheel, this design flips the layout: the thicker outer tube is fixed at the top triple clamp, and the thinner stanchion connects down to the axle. The “single adjustable” feature means riders can tune one primary damping parameter, usually rebound damping or preload, without complex multi-knob controls found on high-end racing forks.
Shangxia focuses on developing this suspension for street motorcycles, dirt bikes, pit bikes and high-power electric motorcycles. It is built to deliver the rigidity gain of inverted forks while keeping tuning simple and the price accessible for ordinary riders and custom workshops. Many riders mistakenly think all inverted forks are complicated racing parts. This single-adjustable version fills the gap between basic non-adjustable forks and expensive dual-adjustable racing suspension. In the following sections, we break down the real riding frustrations this product solves and how it behaves on different road and off-road surfaces.
2. Common Suspension Pain Points for Two-Wheeler Riders
We collect feedback from aftermarket installers, bike builders and end users to sort out the most frequent complaints with stock conventional forks. These issues do not only hurt riding comfort; they also increase safety risks during emergency braking and cornering:
- Excessive fork flex during hard braking: Standard telescopic forks twist under heavy front load, leading to vague steering and unstable front-end feel when stopping quickly.
- No adjustable tuning: Stock forks have fixed damping. Riders cannot adapt suspension response for passenger load, luggage, or switch between paved roads and bumpy trails.
- High unsprung weight: Heavier parts sit near the wheel, making the fork slower to follow small bumps and creating harsh, jarring feedback.
- Early oil leakage and seal failure: Poor sealing structure lets dust, sand and mud scratch stanchion surfaces, causing oil leaks and gradual damping loss.
- Too steep upgrade jump: Dual-adjustable racing forks are costly and have a steep learning curve. Casual riders often cannot use all those adjustment knobs properly.
- Poor compatibility for custom builds: Many aftermarket forks have unique triple clamp spacing or axle sizes, requiring expensive custom machining for retrofits.
These pain points create a tough choice: keep the weak stock fork or overspend on a professional racing fork. This market gap is the core design target of Shangxia’s Upside Down Single Adjustable Suspension.
3. Core Design and Performance Advantages of Shangxia USD Single Adjustable Suspension
Every structural improvement of this suspension directly targets the rider pain points listed above. The large-diameter upper outer tube boosts torsional stiffness, while the simplified single-adjust mechanism keeps operation friendly for everyday users.
Higher Torsional Rigidity and Reduced Flex
The thick outer tube is clamped by triple clamps at the top. It resists twisting under heavy braking and cornering, delivering clearer, more predictable steering feedback.
Single External Adjustment for Simple Tuning
One easy-access adjuster controls rebound or preload. Riders can soften or firm up the return speed without confusing high-speed and low-speed compression settings.
Lower Unsprung Mass
Heavier components move upward away from the wheel. The suspension reacts faster to small bumps, improving grip on gravel, dirt and uneven pavement.
Dust and Oil Seal Protection Package
Dual dust wipers and high-pressure oil seals block mud and grit. This lowers stanchion scratching and extends service life for off-road use.
Balanced Cost and Performance
It keeps the stiffness benefits of USD forks but avoids the premium pricing and complex tuning of fully adjustable racing suspension.
Multiple Size and Mount Options
Different travel lengths, axle sizes and triple clamp spacing support direct replacement and custom frame builds for many two-wheeler models.
4. Key Technical Specification Reference Table
| Item | Parameter Description |
|---|---|
| Suspension Type | Upside Down Single Adjustable Hydraulic Front Fork |
| Adjustment Function | Rebound damping or spring preload adjustable (single knob) |
| Travel Options | 110 mm, 130 mm, 150 mm, 170 mm optional |
| Stanchion Diameter | 33 mm / 37 mm / 41 mm available |
| Axle Size | 12 mm, 15 mm, 17 mm, 20 mm options |
| Body Material | High-strength aluminum alloy outer tube, hard chrome plated stanchion |
| Working Fluid | Special fork oil with different viscosity for cold or hot climate |
| Surface Finish | Anodized black, gold, silver and custom color available |
Note: These figures serve as general reference. Exact travel, mounting dimensions and oil capacity data will be provided by Shangxia according to your selected model.
5. Ideal Application Scenarios for This Suspension
This USD suspension balances performance and usability, so it fits many two-wheeler projects that need better front-end stability without overcomplicated tuning:
- Dirt bikes and pit bikes: Works for trail riding, hill climbing and weekend off-road sessions. Riders can tune rebound to prevent harsh top-out on rough landings.
- Street and commuter motorcycles: Improves braking stability and absorbs potholes for daily road use.
- High-power electric motorcycles and e-dirt bikes: Popular for custom e-bike builds, supporting heavier vehicle weight and strong regenerative braking loads.
- Custom cafe racer and scrambler builds: Clean inverted appearance plus adjustable function for professional bike workshops.
- Aftermarket upgrade kits: Direct bolt-on replacement for many stock forks for retail shops selling suspension upgrade packages.
For builders, one key advantage is flexible customization. Shangxia can adjust length, color and marking for batch aftermarket orders, which helps retailers create their own branded upgrade kits.
6. Installation Checklist and Regular Maintenance Guide
Even premium USD forks will perform poorly with wrong installation or neglected service. Most leaks and inconsistent damping are caused by assembly errors or contaminated fork oil.
Pre-Installation Checklist
- Verify triple clamp spacing, axle size and wheel hub match before disassembly
- Check stanchion surface for scratches, dents or shipping damage; confirm dust seals and oil seals are intact
- Prepare the correct grade and volume of fork oil recommended for the model
- Make sure torque wrenches are available for triple clamps, axle pinch bolts and brake caliper mounts
Setup and Tuning Tips
After mounting, set static sag first according to rider weight. Use the single adjuster to test rebound: after compressing the fork, it should return smoothly without slamming upward or moving too slowly. Test slowly at low speed before riding aggressively on trails or roads.
Periodic Maintenance Plan
- After every off-road ride: Wipe stanchions clean, check for mud buildup and seal damage
- Every 30 to 50 riding hours: Inspect for oil weeping around seals, check bolt torque
- Every 100 to 150 riding hours: Full service, drain old oil, replace seals and dust wipers if needed
7. Common Fault Diagnosis and Troubleshooting Table
| Fault Symptom | Possible Causes | Recommended Solution |
|---|---|---|
| Oil leaking from fork seal | Scratched stanchion, worn oil seal, damaged dust wiper, overfilled fork oil | Clean or replace seal set, repair damaged stanchion, adjust oil level |
| Fork rebounds too fast or kicks back | Rebound setting too open, wrong oil viscosity, low oil volume | Turn rebound adjuster to slower setting, replace with correct fork oil |
| Fork feels stiff and will not compress smoothly | Too much preload, heavy dirt binding seals, incorrect oil level | Reduce preload, clean seals, drain oil to rated level |
| Front flex and vague steering under hard brake | Loose triple clamp bolts, wrong pinch torque, mismatched fork model | Retorque triple clamps, confirm you have selected the correct USD fork for your weight and use case |
8. Frequently Asked Questions (FAQ)
Q1: What does “single adjustable” mean on this USD suspension?
Single adjustable means only one damping parameter can be tuned externally, usually rebound damping. It is simpler than dual-adjust forks that control both compression and rebound, and easier for new suspension tuners.
Q2: Can this upside down fork replace my original conventional telescopic fork directly?
Direct fit depends on triple clamp width, axle diameter, wheel spacing and overall length. Shangxia can provide dimension drawings for you or your mechanic to verify compatibility before purchase.
Q3: Is this suspension suitable for professional racing?
It is designed for trail riding, street use, custom builds and recreational off-road. For high-level racing with complex track conditions, you may need a fully dual-adjustable USD fork instead.
Q4: What fork oil should I use for Shangxia upside down single adjustable suspension?
We recommend standard motorcycle fork oil. Lower viscosity oil works for cold climates, while higher viscosity oil suits hot weather and heavier riders. The product manual lists the recommended grade and oil capacity.
Q5: Can Shangxia support custom colors, logos and bulk orders for aftermarket shops?
Yes. Shangxia supports custom surface anodizing, laser marking, packaging and model customization for wholesale customers. Our team can work with your technical requirements and delivery schedule.
9. Closing and Custom Suspension Support
Choosing front suspension is a balance of rigidity, tuning complexity, riding purpose and budget. Upside Down Single Adjustable Suspension solves many common frustrations of stock forks: flexy braking feel, no tuning options, poor bump response and the intimidating learning curve of racing suspension. It brings the structural benefits of inverted USD forks while keeping adjustment intuitive and service straightforward.
Shangxia specializes in inverted front suspension for motorcycles, electric bikes, pit bikes and custom vehicle builders. Whether you are a retail shop sourcing upgrade kits, a bike builder designing a scrambler or e-moto project, or an individual rider looking for a bolt-on fork upgrade, we can provide dimension sheets, test data, bulk pricing and technical guidance. If you want to confirm fitment, compare travel options or ask about custom finishes, feel free to contact us. Share your bike model, rider weight, riding terrain and axle requirements, and our suspension specialists will help you select the correct fork and get a smoother, more stable ride.
Ready to upgrade your front handling with reliable Upside Down Single Adjustable Suspension? Contact us today and our suspension experts will guide you to the right specification for your bike and riding style.
