Product Description

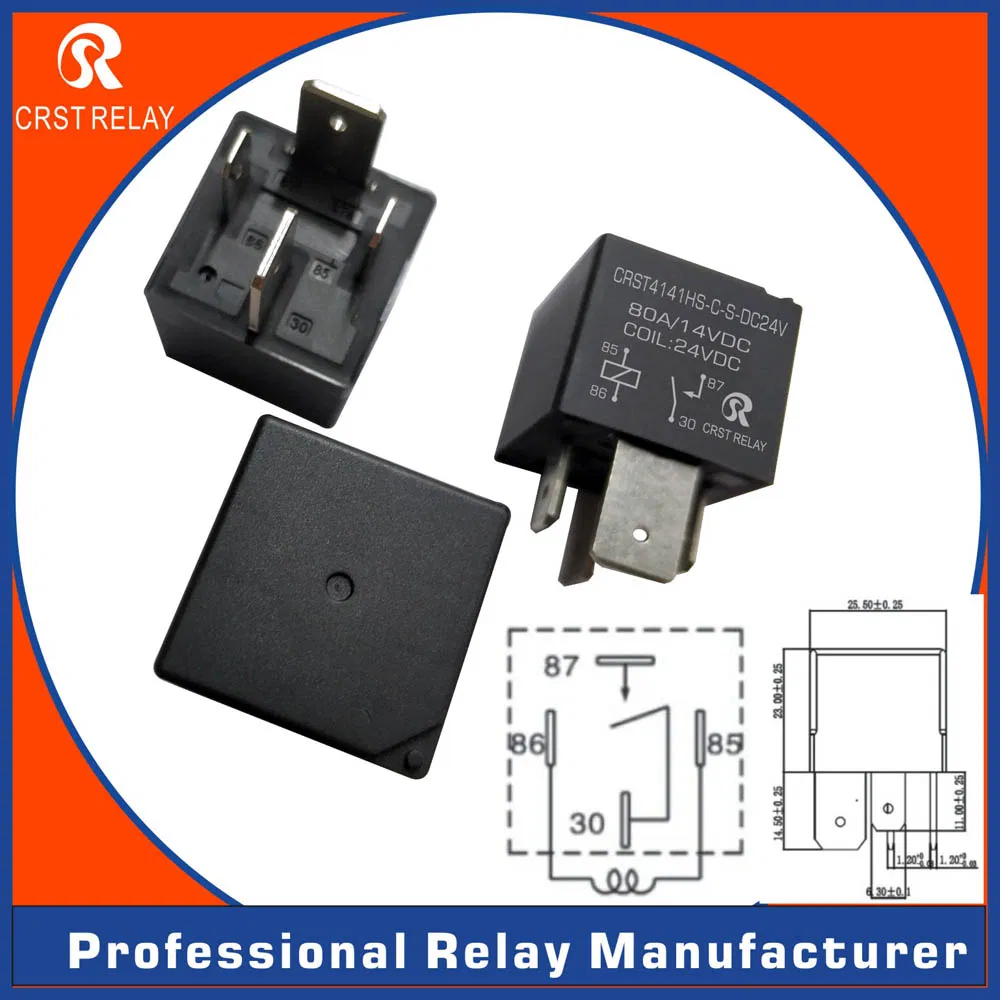

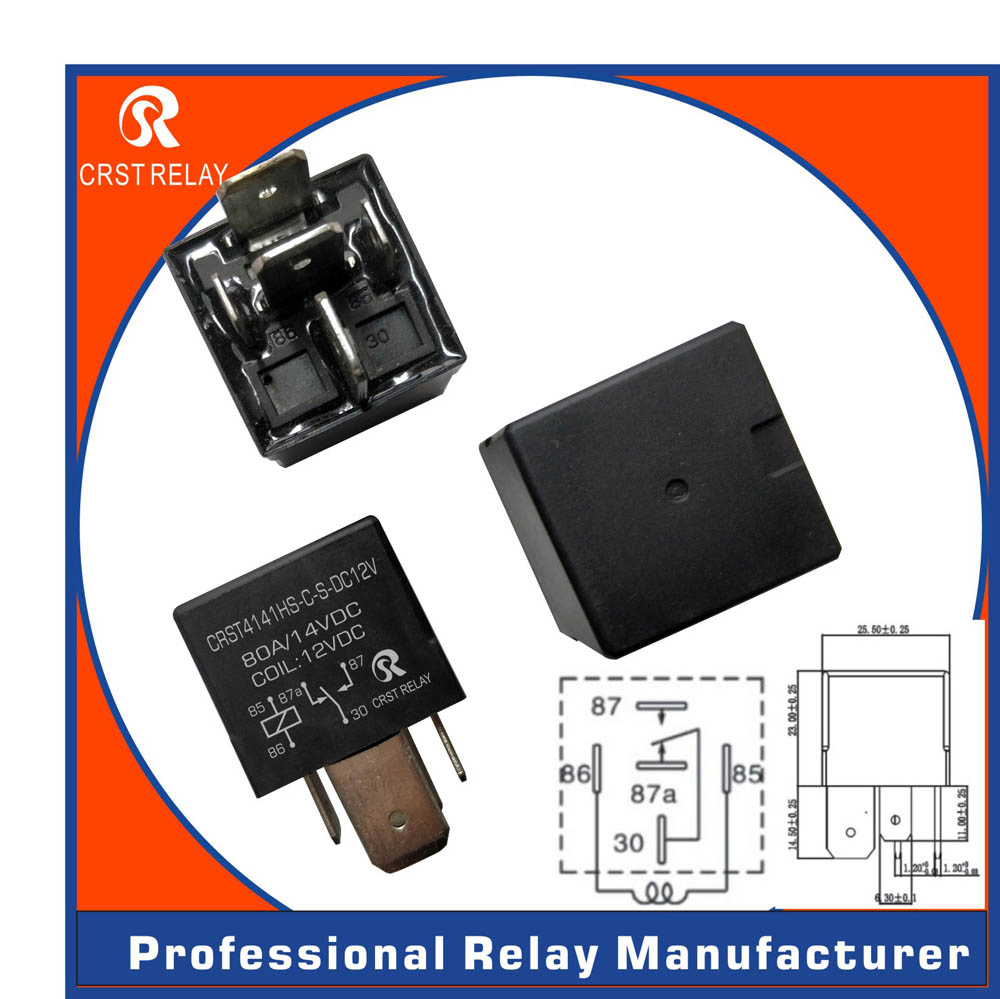

CRST4141HS (Dimensions):26X26X23mm

Features
1,Small Size. 2, Contact load capacity up to 80A. 3, Suitable for automobile.
Ordering information
CRST 4141HS--A-S-DC12V-R 1 2 3 4 5
1, Part number: CRST4141HS 2, Contact arrangement:A:1A(80A);B:1B(60A);C:1C(70/80A) 3, Enclosure: S:Sealed type; Z:Dust cover 4,Coil rated voltage(V):DC:12,24 5, Coil transient suppression: R:with Resistance; Nil: Standard
Contact data
Contact Arrangement					1A(1H)(SPST NO);1B(SPST NC);1C(1Z)(SPDT)
Contact Material					AgNi, AgSnO_2,AgCdO
Conatct Rating(Resistive)					1A(80A/14VDC) 1B(60A/14VDC) 1C(NO:70A/80A/14VDC)
Max.Switching Current					80A/14VDC
Operation Life			Electrical		0.5*10⁵
			Mechanical		10⁷
Coil Parameter
Coil voltage (VDC)		Coil Resistance Ω±10%		Pick up Voltage VDC(Max) (70% of rated voltage)	Release voltage VDC(Min) (10% of rated voltage)	Coil power consumption (W)	Operate Time (mS)	Release Time (mS)
Rated	Max
12	15.6	90		8.4	1.2	1.6	≤10	≤10
24	31.2	320		16.8	2.4	1.8

Caution:1,The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay.
2,Pick up and release voltage are for test purposes only and are not be used as design criteria.

Operation condition
Insulation Resistance	100MΩ min(at 500VDC)
Dielectric Strength Between Contacts Between Contacts and Coil	50Hz AC500V 50Hz AC500V
Shock Resistance	10~55Hz, Double amplitude 1.5mm
Vibration Resistance	10~55Hz Double amplitude 1.5mm
Ambient Temperature	-40~85ºC
Relative Humidity	85%(at 40ºC)
Mass	28g
