High Withstand Voltage Car Light Electric Relay with UL/TUV/CQC
High Withstand Voltage Car Light Electric Relay with UL/TUV/CQCProduct Description Features:*Brand: Meishuo*Contact material: Silver Alloy*Contact arrangement: 1A 1C *Style: Automotive relay*Terminal Form: QC*Construction : Dust Protected or sealed Detailed ImagesRelay MAA2 information sheet M......
Send Inquiry
Product Description
High Withstand Voltage Car Light Electric Relay with UL/TUV/CQC
Product Description
Product Description
Features:
*Brand: Meishuo
*Contact material: Silver Alloy
*Contact arrangement: 1A 1C
*Style: Automotive relay
*Terminal Form: QC
*Construction : Dust Protected or sealed

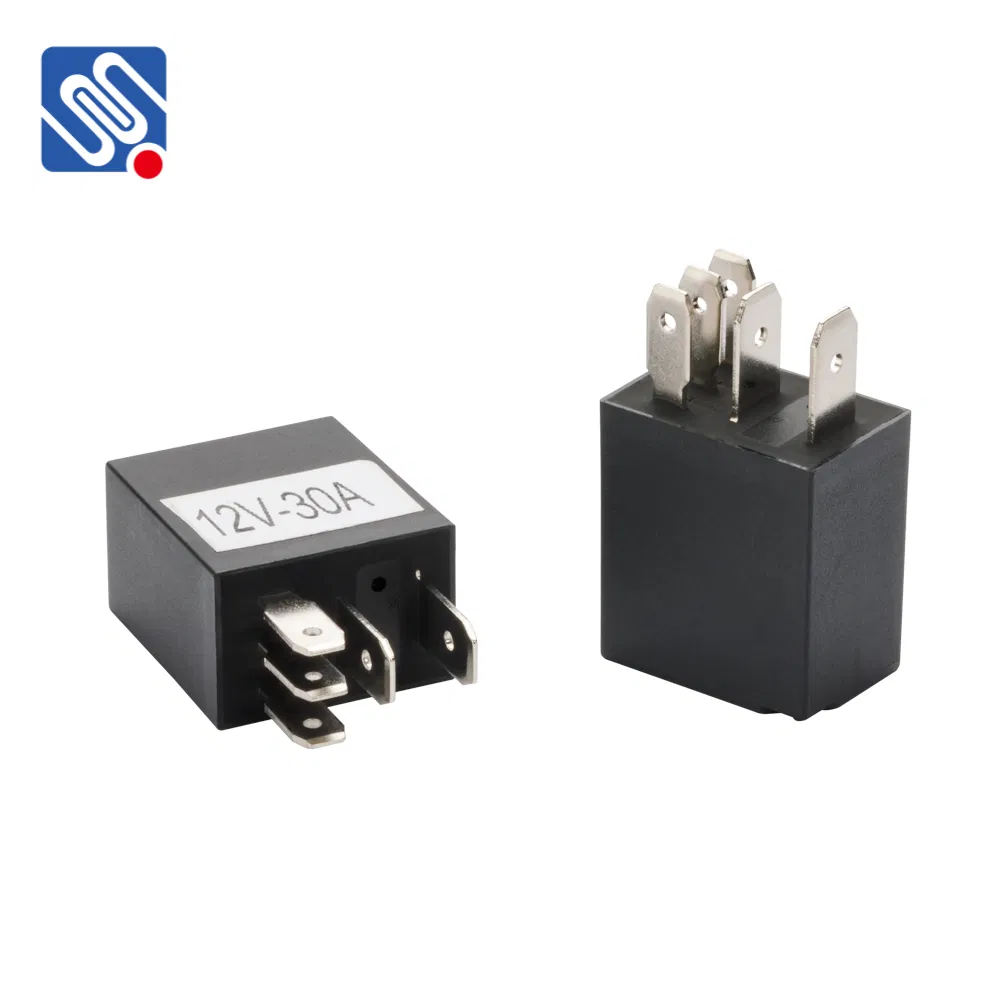

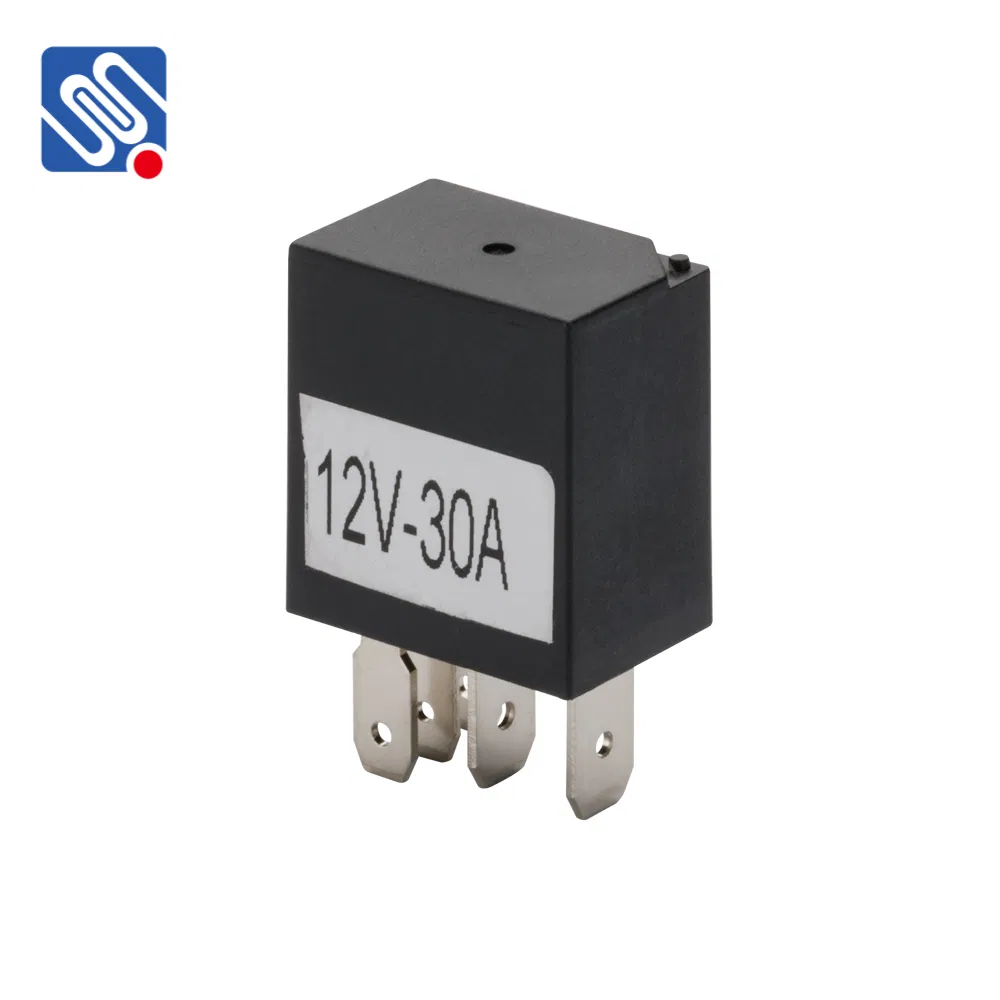

Detailed Images

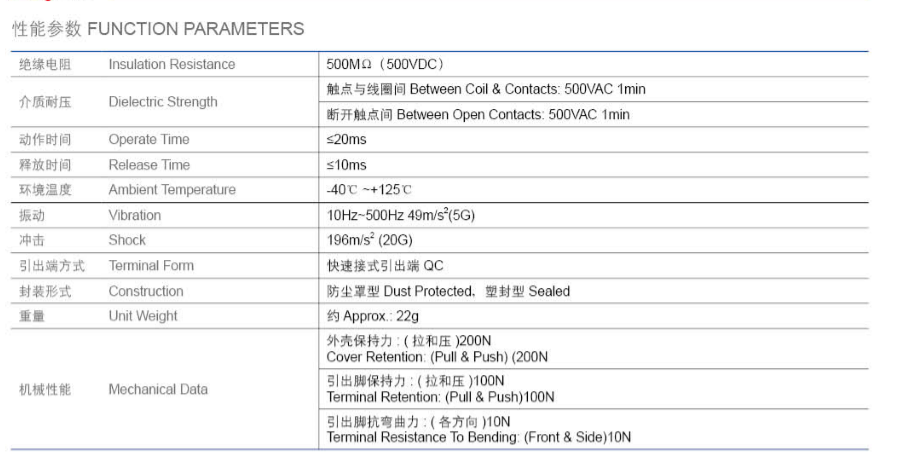

Relay MAA2 information sheet

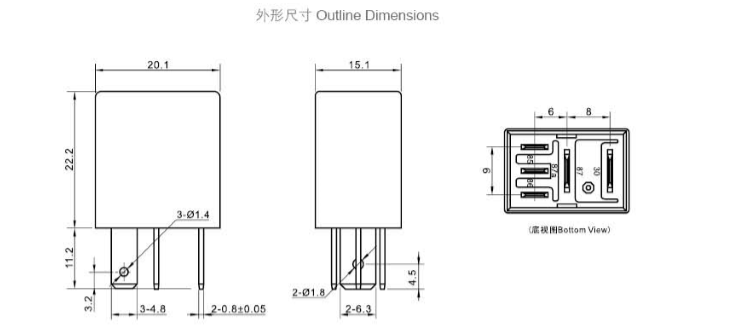

MAA-S-112-A Outline Dimensions

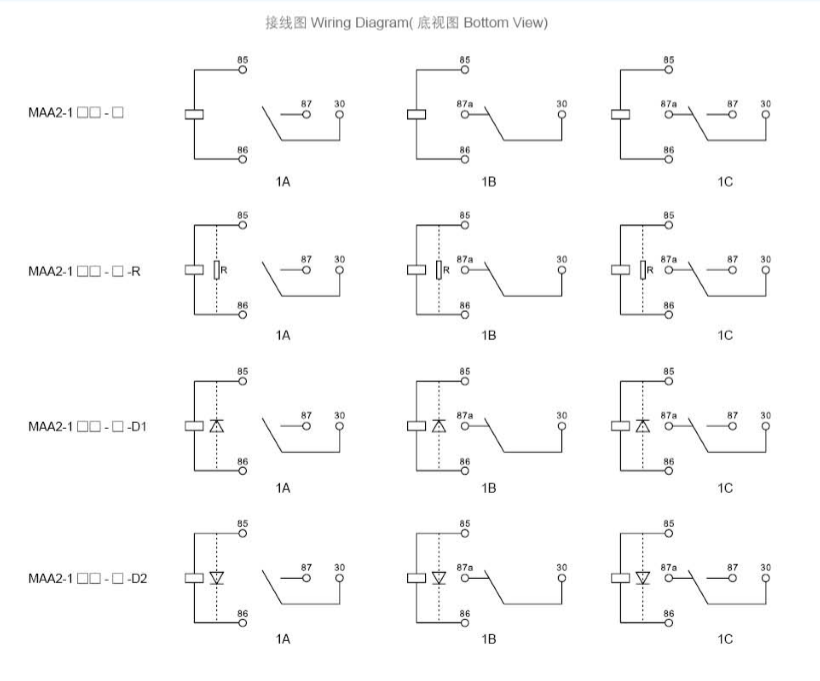

Wiring Diagram
* 30A switching capability
* Ambient temp can reach 125
* 1 form A & 1 form C Contact arrangement
* Dust protected type and sealed type available
* Outline Dimensions : 20.1*15.1*22.2 mm
Product packaging
* 50 pcs/plastic box
* 20 plastic boxes/inner box, inner boxes/master box
* 1000 pcs/master box
* MEAS: 40.2*23.5*26cm
* G.W.:13.2KGS
* N.W.:12.2KGS
Our Services & Strength
PRE-SALES SERVICE
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
AFTER-SALES SERVICE
*If you have any problems, we have a group of professional engineers to assist you in any time.
FAQ
Q1. Can I have sample for relay?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about lead time?
A:Sample needs 3-9 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for relay order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long dose it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for relay?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it ok to print my logo on relay?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
