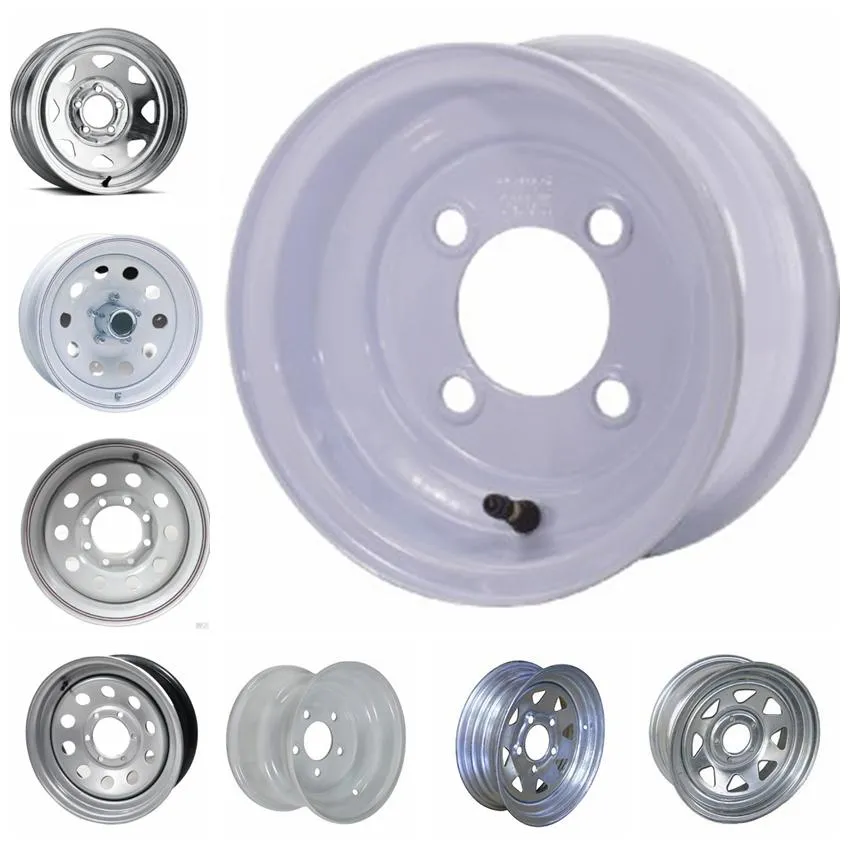

13X4.5 White Modular Steel Trailer Wheel with No Pinstripes, 5 Lug, 1660 Max Load
13x4.5 White Modular Steel Trailer Wheel With NO Pinstripes, 5 Lug, 1660 Max LoadSpecificationsAbout MastervimMastervim supplies OEM and ODM service on steel wheels, including small ATV, car trailer, agricultural implement, and truck construction.Over 70% production capacity for the overseas market,......
Send Inquiry
Product Description

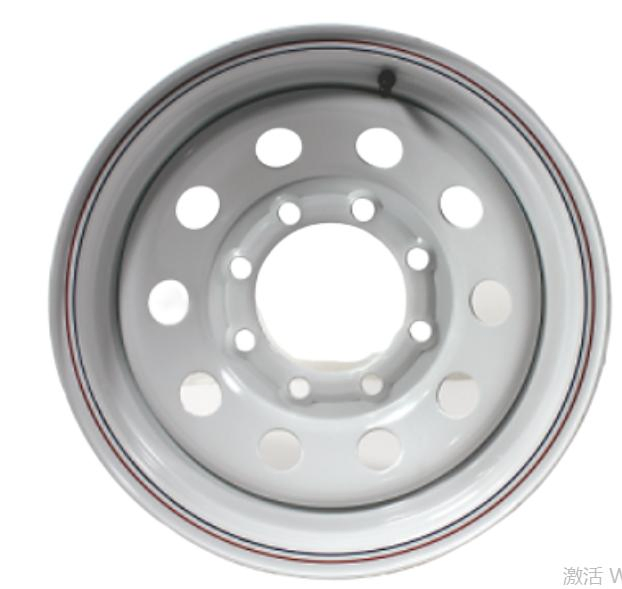

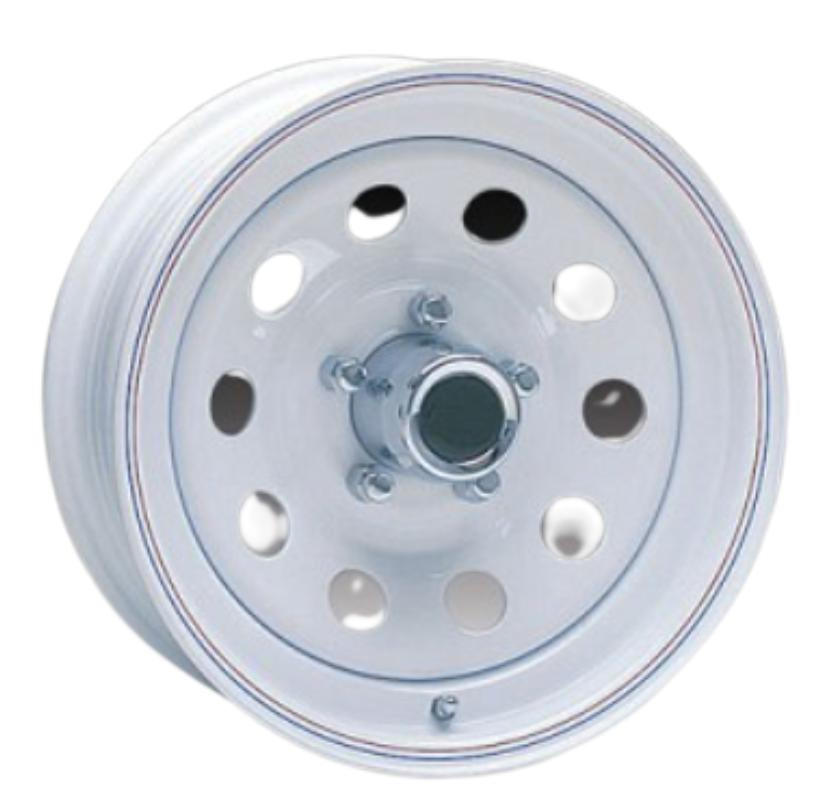

13x4.5 White Modular Steel Trailer Wheel With NO Pinstripes, 5 Lug, 1660 Max Load
Specifications
About Mastervim
Mastervim supplies OEM and ODM service on steel wheels, including small ATV, car trailer, agricultural implement, and truck construction.
Over 70% production capacity for the overseas market, specially customized for OE, we get ISO9001 TS16949 DOT ECE TUV TRA ETRO on additional wheel production.

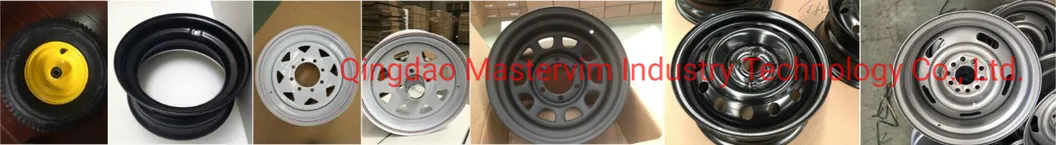

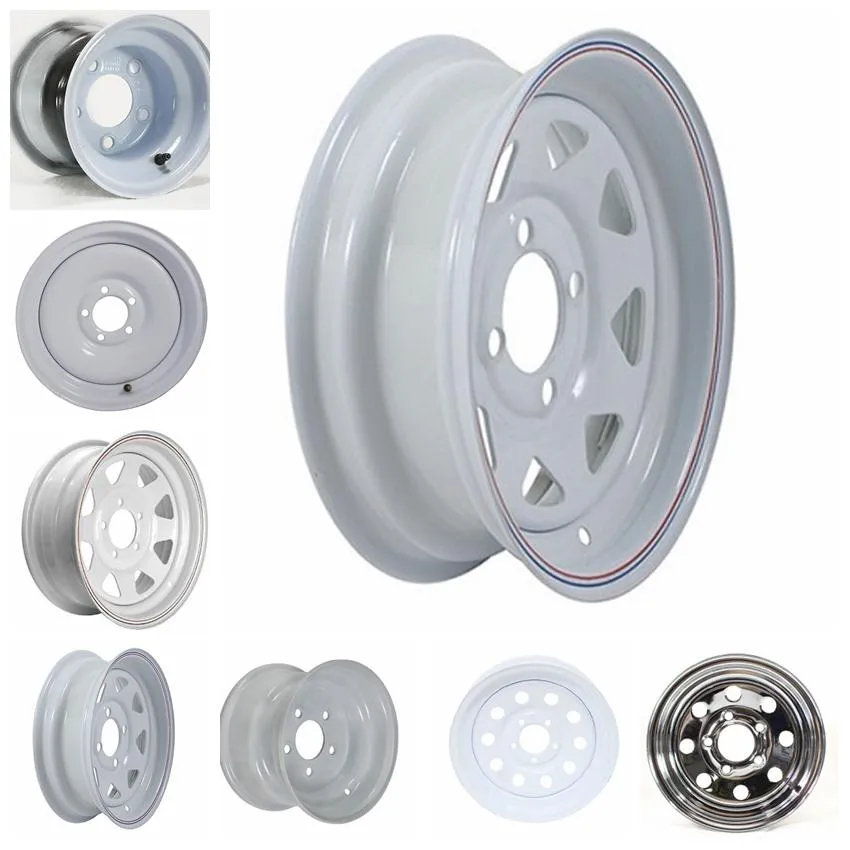

Car trailer wheels line

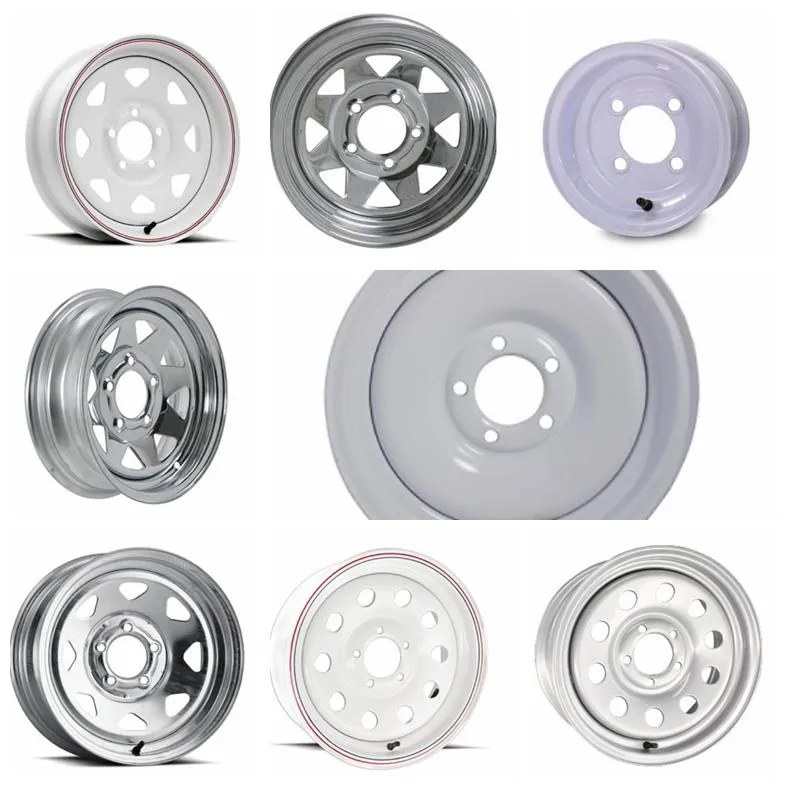

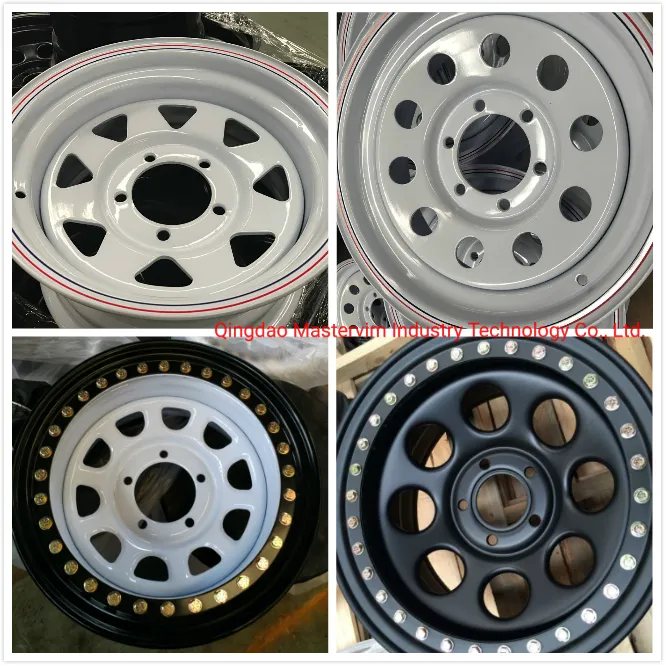

Series types optional, such as 8 spoke, modular, directional, EU trailer wheels, 5 spoke for trailer &4x4...
Customized Service
We supply OE wheels for the factory only,such as trailer factory, equipment OE mfg, after sale shop

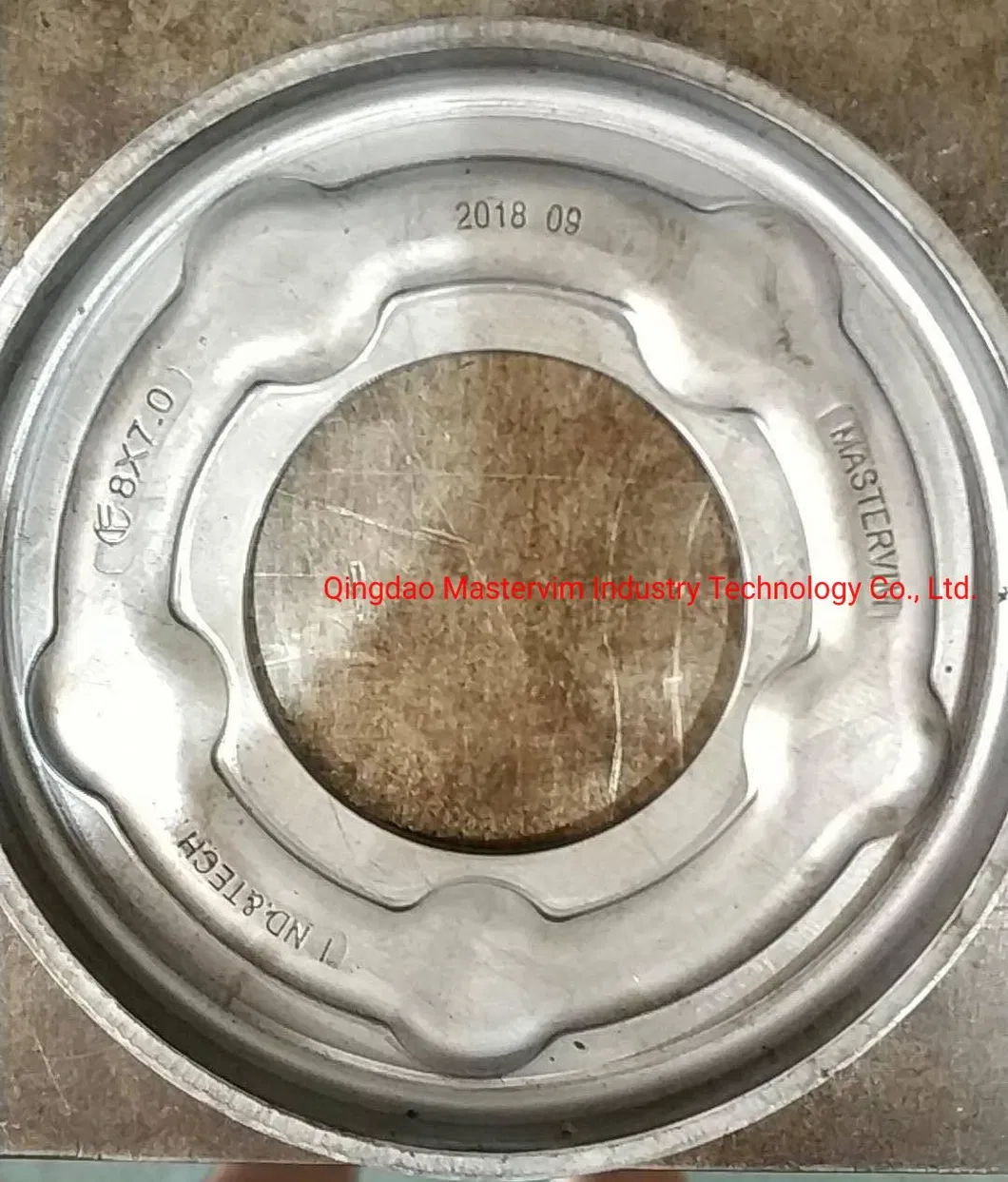

Mark the logo depending on your request

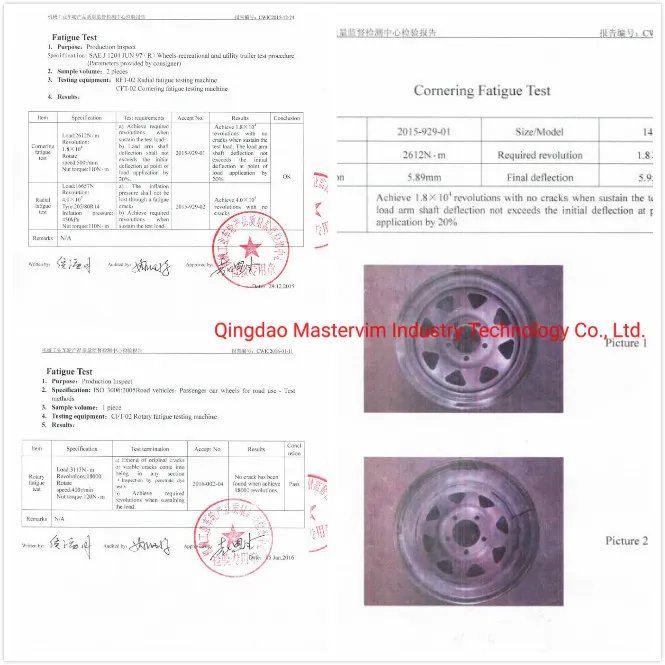

Production report

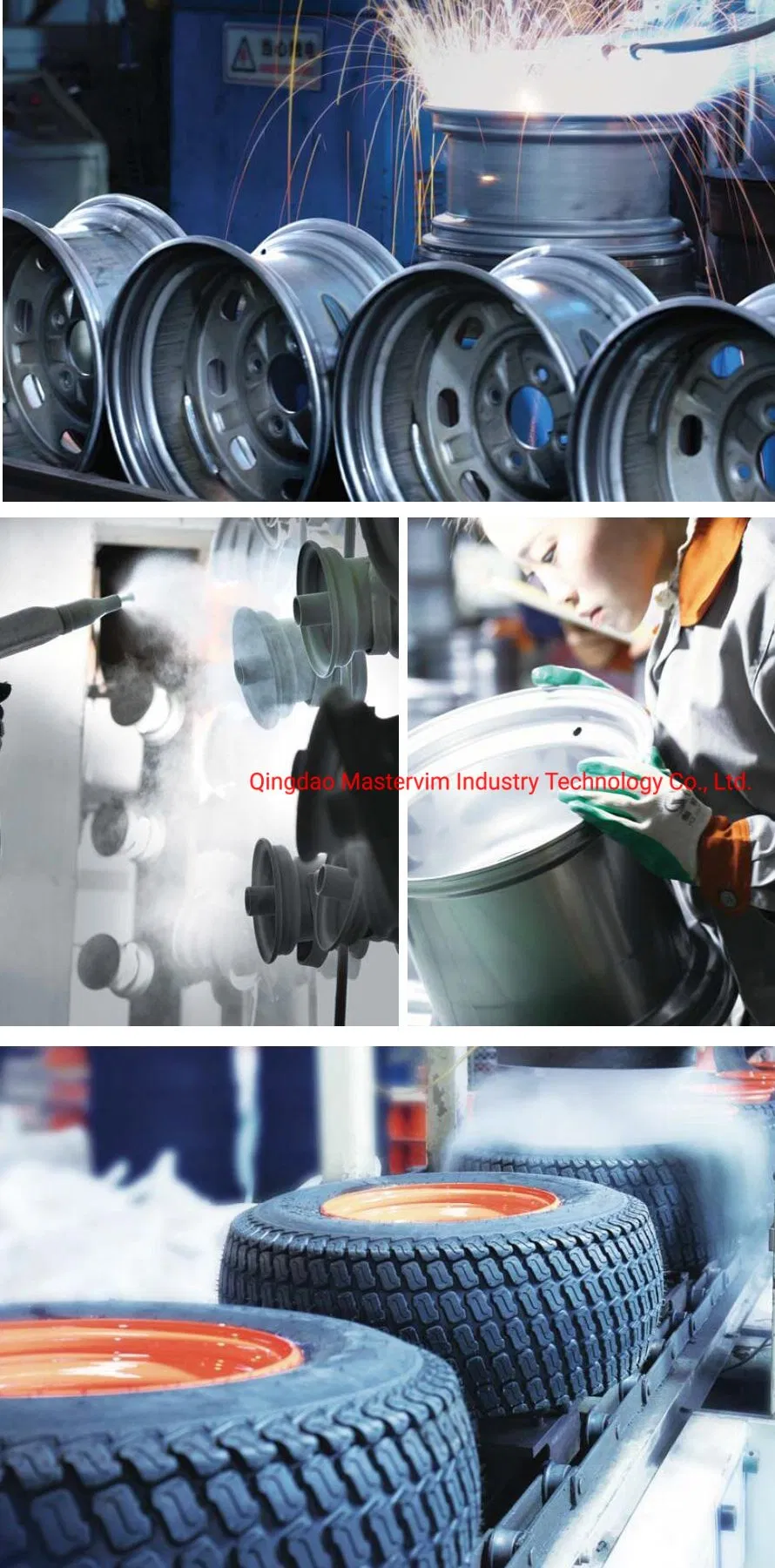

Automatic welding QC &assembling line

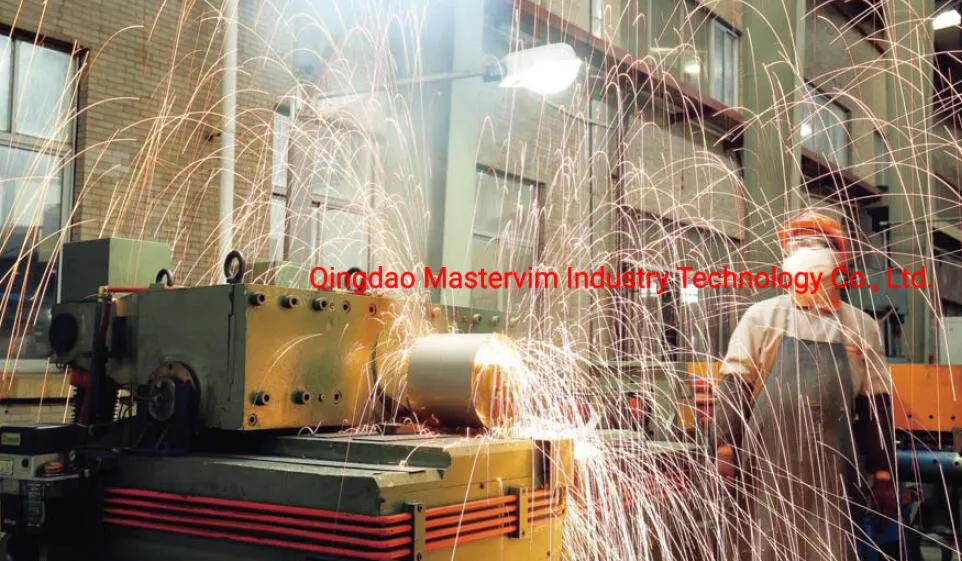

Mastervim wheels production line
Specifications
About Mastervim
Mastervim supplies OEM and ODM service on steel wheels, including small ATV, car trailer, agricultural implement, and truck construction.
Over 70% production capacity for the overseas market, specially customized for OE, we get ISO9001 TS16949 DOT ECE TUV TRA ETRO on additional wheel production.
Car trailer wheels line
Series types optional, such as 8 spoke, modular, directional, EU trailer wheels, 5 spoke for trailer &4x4...
| RIM SIZE | PCD (MM) | CB (MM) | ET (MM) | LOAD CAPACITY (LB) |
| 10x4.5 | 4x100 | 67.5 | 0 | 800 |
| 10x3.5 | 4x100 | 68 | 0 | 800 |
| 12×4J | 4/101.6 | 71.6 | 0 | 1045 |
| 5/114.3 | 75 | 0 | 1100 | |
| 13×4.5J | 4/100 | 68 | -13~0 | 1100 |
| 4X101.6 | 67 | 0 | 1100 | |
| 4/114.3 | 84 | -10~+3 | 1100 | |
| 5/108 | 75 | -10~0 | 1480 | |
| 5/114.3 | 75 | -10~0 | 1480 | |
| 5/114.3 | 81.5 | -10~0 | 1480 | |
| 13×5.5J | 4/100 | 73 | -10~0 | 1480 |
| 4X101.6 | 67 | 0 | 1100 | |
| 4/114.3 | 84 | -10~0 | 1480 | |
| 5/108 | 75 | -10~0 | 1480 | |
| 5/114.3 | 75 | -10~0 | 1480 | |
| 5/114.3 | 81.5 | -10~0 | 1480 | |
| 14x5J | 5-108 | 75 | -5~ +8 | 1870 |
| 5/120.65 | 84 | 0~14 | 1870 | |
| 5-114.3 | 81/84 | -14~0 | 1870 | |
| 14×5.5J OR14X6 | 5/114.3 | 81/84 | 0 | 1870 |
| 4/100 | 75 | -10~22 | 1870 | |
| 4X101.6 | 67 | 0 | 1100 | |
| 4/114.3 | 84 | -10~18 | 1870 | |
| 4/139.7 | 108.7 | -10~18 | 1870 | |
| 5/120.65 | 84 | -4~20 | 1870 | |
| 5/108 | 75 | -10~22 | 1870 | |
| 5/114.3 | 81/84 | -10~18 | 1870 | |
| 5-139.7 | 108.7 | -17~ +15 | 1870 | |
| 5-160 | 125 | -10~ +30 | 1870 | |
| 6/139.7 | 108.7 | -10~18 | 1870 | |
| 6/139.7 | 110 | -10~18 | 1870 | |
| 14*7 | 4-100 | 75 | +4~ +37 | 1870 |
| 5-114.3 | 84 | -10~ +23 | 1870 | |
| 5-139.7 | 108.7 | -3~ +30 | 1870 | |
| 6-139.7 | 108.7 | -3~ +30 | 1870 | |
| 15×5J | 5/114.3 | 81/84 | -10~10 | 2050 |
| 5/127 | 81/84 | -10~10 | 2050 | |
| 15×6J | 5/114.3 | 84 | -10~10 | 2150 |
| 5-120.65 | 84 | -22~ +8 | 2150 | |
| 5/127 | 84 | -10~10 | 2150 | |
| 5/139.7 | 108.8 | -10~10 | 2150 | |
| 5/139.7 | 110 | -10~10 | 2150 | |
| 6/139.7 | 108.8 | -10~10 | 2600 | |
| 6/139.7 | 110 | -10~10 | 2600 | |
| 15×7J | 5/114.3 | 84/75/71.6 | -15~15 | 2600 |
| 5/120.65 | 84 | -15~15 | 2600 | |
| 5/127 | 84 | -15~15 | 2600 | |
| 5/139.7 | 108 | -15~15 | 2600 | |
| 5/139.7 | 110 | -15~15 | 2600 | |
| 6/139.7 | 108 | -15~15 | 2600 | |
| 6/139.7 | 110.5 | -15~15 | 2600 | |
| 8x165.1 | 130.8 | -15~15 | 2600 | |
| 15×8J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 | |
| 5/120.65 | 84 | -25~15 | 2600 | |
| 5/127 | 75 | -25~15 | 2600 | |
| 5/127 | 84 | -25~15 | 2600 | |
| 5/139.7 | 108 | -25~15 | 2600 | |
| 5/139.7 | 110 | -25~15 | 2600 | |
| 5X160 | 110 | -25~16 | 2600 | |
| 5x165.1 | 125 | -25~17 | 2600 | |
| 6/139.7 | 108 | -25~15 | 2600 | |
| 6/139.7 | 110 | -25~15 | 2600 | |
| 15x8 | 8x165.1 | 130.8 | -15~15 | 2600 |
| 15×9J | 5/114.3 | 84/75/71.6 | -25~15 | 2600 |
| 5/114.3 | 84 | -25~15 | 2600 | |
| 5/120.65 | 84 | -25~15 | 2600 | |
| 5/127 | 75 | -25~15 | 2600 | |
| 5/127 | 84 | -25~15 | 2600 | |
| 5/139.7 | 108 | -25~15 | 2600 | |
| 5/139.7 | 110 | -25~15 | 2600 | |
| 5X160 | 110 | -25~16 | 2600 | |
| 5x165.1 | 125 | -25~17 | 2600 | |
| 6/139.7 | 108 | -25~15 | 2600 | |
| 6/139.7 | 110 | -25~15 | 2600 | |
| 15*10 or 15X12 | 5-114.3 | 84/75/71.6 | -46~ +58 | 2600 |
| 5-120.65 | 84 | -46~ +58 | 2600 | |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 | |
| 5-139.7 | 108.7/110 | -46~ +58 | 2600 | |
| 5X160 | 110 | -25~16 | 2600 | |
| 5x165.1 | 125 | -25~17 | 2600 | |
| 6-139.7 | 108.7/110 | -46~ +58 | 2600 | |
| 15x10 | 8x165.1 | 130.8 | -32 | 2600 |
| 16×6J | 5-114.3 | 84 | -17~ +6 | 3200 |
| 5-150 | 112 | 0~ +10 | 3200 | |
| 5-139.7 | 108.7/110 | -17~ +10 | 3200 | |
| 5-165 | 124 | 0~ +15 | 3200 | |
| 6/139.7 | 108.7 | 0 | 3200 | |
| 6-114.3 | 84 | -17~ +6 | 3200 | |
| 6/165.1 | 130.8 | 0 | 3200 | |
| 8/165.1 | 124 | 0 | 3500 | |
| 8/165.1 | 125.7 | 0 | 3500 | |
| 8/165.1 | 130.8 | 0 | 3500 | |
| 16×7J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 | |
| 5-120.65 | 75/84 | -12~ +35 | 3200 | |
| 5/139.7 | 108.7 | -25~15 | 3200 | |
| 5/150 | 112 | 0~5 | 3200 | |
| 5/165.1 | 125 | 0~8 | 3200 | |
| 6/139.7 | 108.7 | -25~15 | 3200 | |
| 6/139.7 | 110.1 | -28~0 | 3200 | |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 | |
| 16×8J | 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 |
| 6-114.3 | 84 | -15~ +5 | 3200 | |
| 5-120.65 | 75 | -12~ +35 | 3500 | |
| 5-120.65 | 84 | -12~ +35 | 3500 | |
| 5/139.7 | 108.7 | -25~15 | 3500 | |
| 5/150 | 112 | 0~5 | 3500 | |
| 5/165.1 | 125 | 0~8 | 3500 | |
| 6/139.7 | 108.7 | -25~15 | 3500 | |
| 6/139.7 | 110.1 | -28~0 | 3500 | |
| 8/165.1 | 116/124/130.8 | -25~15 | 3500 | |
| 16×10J | 5-120.65 | 75 | -12~ +35 | 3500 |
| 5-120.65 | 84 | -12~ +35 | 3500 | |
| 5-114.3 | 84/75/71.6 | -15~ +5 | 3200 | |
| 6-114.3 | 84 | -15~ +5 | 3200 | |
| 5/139.7 | 108.7 | -25~15 | 3500 | |
| 5/150 | 112 | 0~5 | 3500 | |
| 5/165.1 | 125 | 0~8 | 3500 | |
| 6/139.7 | 108.7 | -35~30 | 3500 | |
| 6/139.7 | 110.1 | -28~0 | 3500 | |
| 8/165.1 | 130.8 | -25~15 | 3500 | |
| 17X8 | 6X139.7 | 108.7 | -6 | 3200 |
| 17x8 | 5x127 | 84 | 0 | 3200 |
| 17x8 | 5x139.7 | 108.7or110 | 0 | 3200 |
Customized Service
We supply OE wheels for the factory only,such as trailer factory, equipment OE mfg, after sale shop
Mark the logo depending on your request
Production report
Automatic welding QC &assembling line
Mastervim wheels production line
