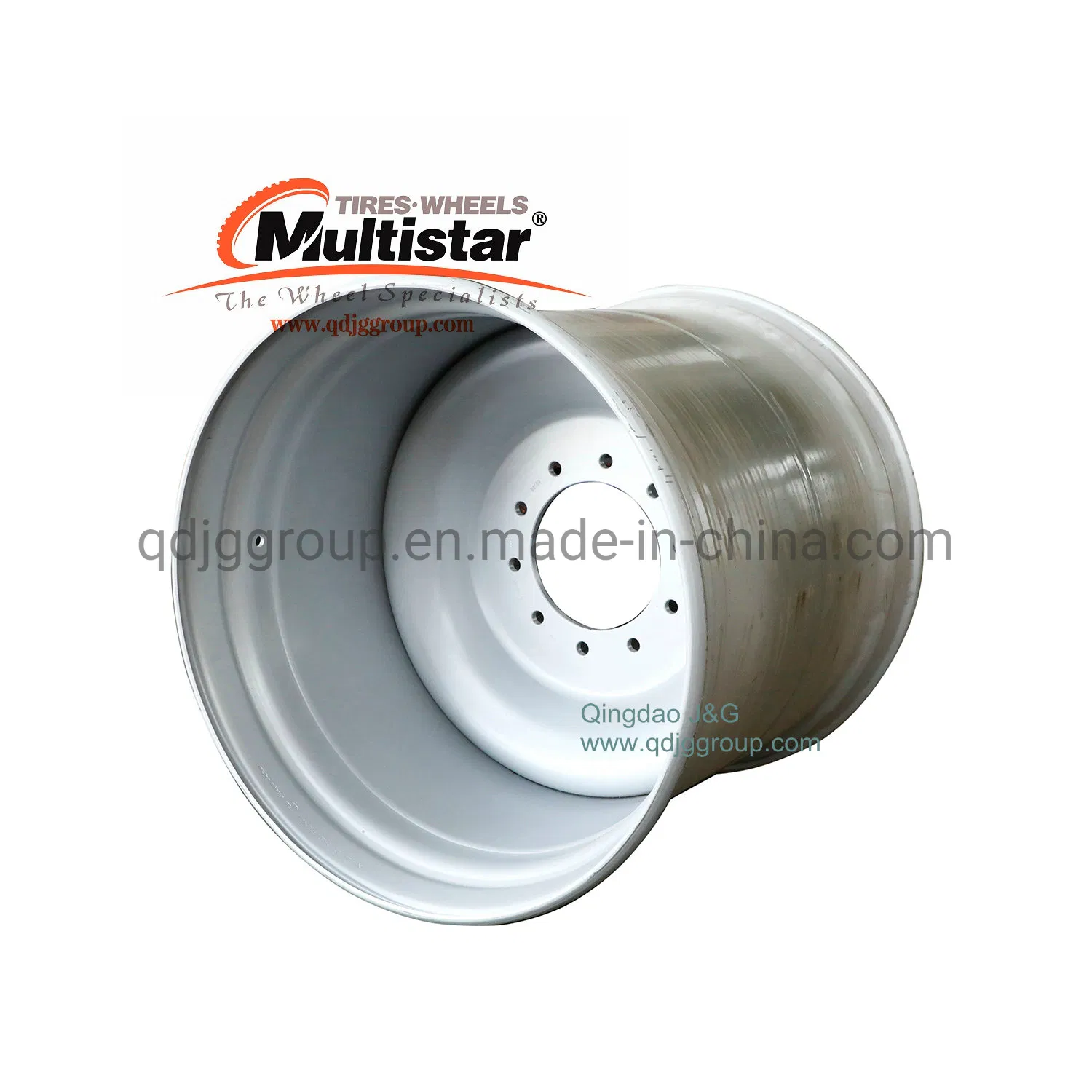

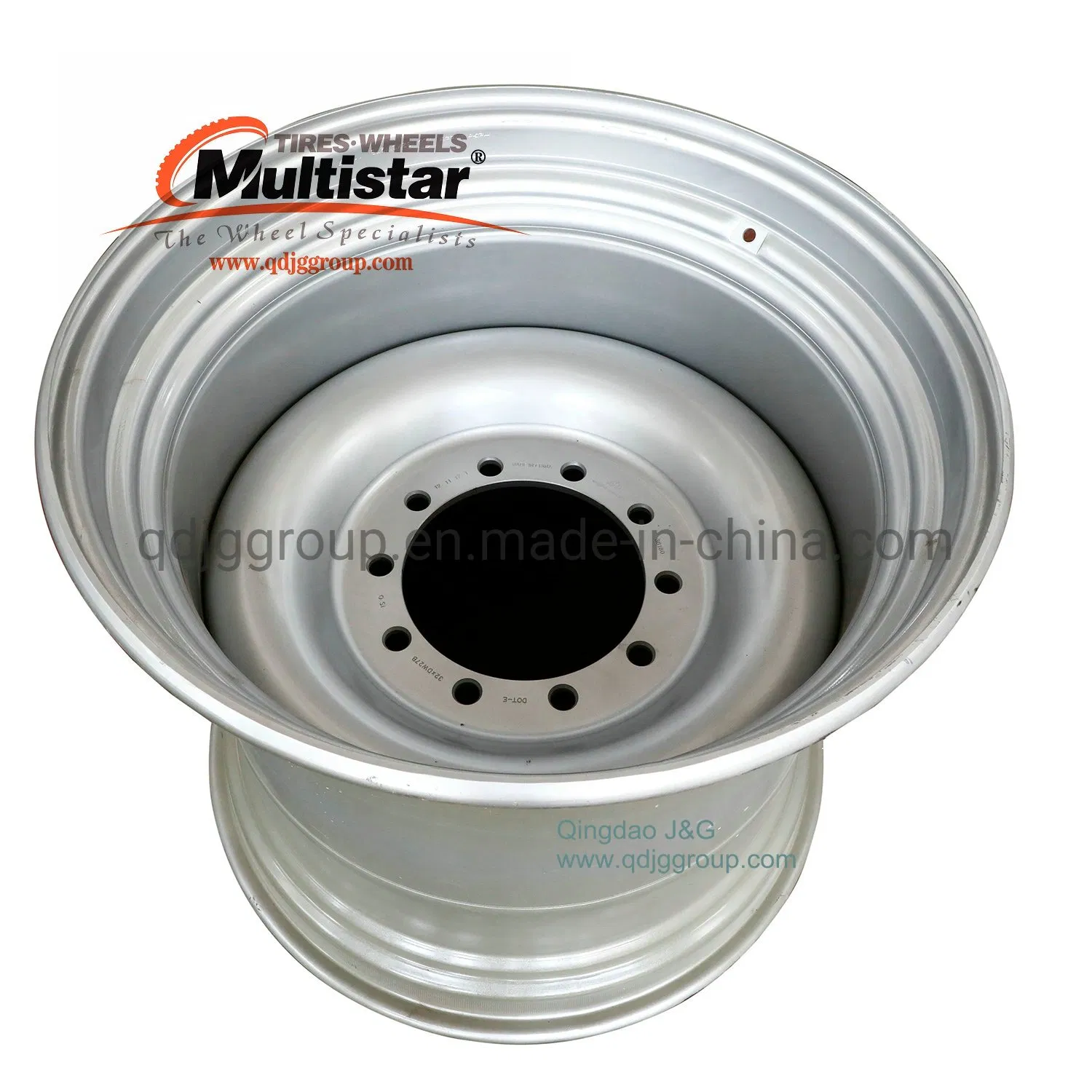

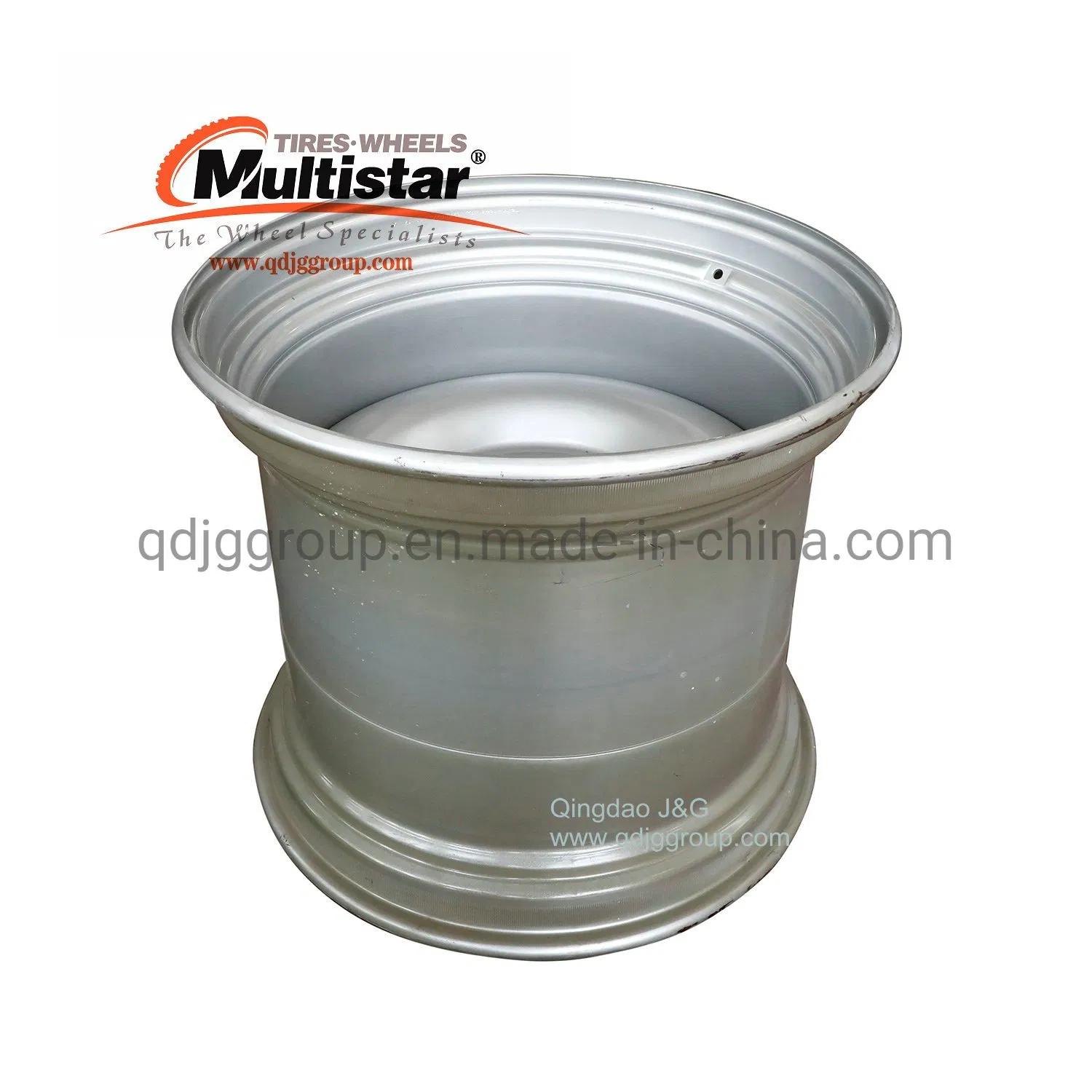

Agricultural Tanker Bins Wheel Rims 22.5X20 22.5X16 22.5X24 26.5X24 30.5X28
Application: Agricultural Flotation TireSize: 20.00x22.5Type: Tubeless Steel WheelParameters: 08/275/221 10/335/281 8/203.2/152.4 10/285.75/220Offset/ Et: 0/-48Brand: MULTISTARPacking: In pallets1.All the wheels are confirmed with DOT,TUV,ISO/TS16949. 2.All the wheels are strictly comply with TRA s......
Send Inquiry
Product Description
Application: Agricultural Flotation Tire
Size: 20.00x22.5
Type: Tubeless Steel Wheel
Parameters: 08/275/221 10/335/281 8/203.2/152.4 10/285.75/220
Offset/ Et: 0/-48
Brand: MULTISTAR
Packing: In pallets
1.All the wheels are confirmed with DOT,TUV,ISO/TS16949.
2.All the wheels are strictly comply with TRA standard.
Color:
RAL1028, RAL9003, RAL9006, RAL9007, RAL9005, etc.
Custom colors are available by request to meet your needs.
Delivery: Immediately from stock or 30 days.
Flotation implement rims:
7x12, 9x15.3, 13x15.5, 11x16, 13x17, 16x17, 9x18, 11x18, 13x18, 11.75x22.5, 16x22.5, 20x22.5, 24x22.5, 20x26.5, 24x26.5, 20x30.5, 24x30.5, 28x30.5
| Inch | Description | Wheels | Tyres |
| 15.5" | one-piece 15° DC | 15.5X13.00 | 400/60-15.5 |
| 15.5X16.00 | 500/55-15.5 | ||
| 16.5" | one-piece 15° DC | 16.5X8.25 | 9.50R16.5 10-16.5 |
| 16.5X9.75 | 12-16.5EM 33X12.50R16.5 | ||
| 16.5X12 | 36x14.5-16.5 | ||
| 17.5" | one-piece 15° DC | 17.5X6.00HC | 215/75R17.5 8R17.5 |
| 17.5X6.75HC | 9R17.5 9.5R17.5 | ||
| 17.5X10.5 | |||
| 19.5" | one-piece 15° DC | 19.5X11.75 | 15R19.5 |
| 19.5X6.00 | 8R19.5 | ||
| 19.5X6.75 | 8R19.5 245/70R19.5 235/75R19.5 | ||
| 19.5X7.50 | 10R19.5 265/70R19.5 | ||
| 19.5X8.25 | 285/70R19.5 | ||
| 19.5X13.00 | 15.0X19.5 | ||
| 19.5X14.00 | 425/55R19.5 435/50R19.5 445/45R19.5 18-19.5 MPT | ||
| 22.5" | one-piece 15° DC | 22.5X5.5 | |
| 22.5X6.00 | 8.5R22.5 | ||
| 22.5X6.75 | 9R22.5 | ||
| 22.5X7.50 | 10R22.5 | ||
| 22.5X8.25 | 11R22.5 | ||
| 22.5X9.00 | 12R22.5 315/80R22.5 | ||
| 22.5X9.75 | 315/80R22.5 | ||
| 22.5X11.25 | 15-22.5, 15R22.5, 16.5/70R22.5, 350/60R22.5, 365/70R22.5 400/55R22.5 375/90R22.5 385/65R22.5 385/55R22.5 425R22.5 | ||
| 22.5X12.25 | 425/65R22.5 | ||
| 22.5X13.00 | 16.5R22.5 16.5/70R22.5 400/55R22.5 425/65R22.5 | ||
| 22.5X13.5 | 15-22.5 16.5-22.5 | ||
| 22.5X14.00 | 18R22.5 415/45R22.5 425/65R22.5 435/45R55.5 445/75R22.5 | ||
| 22.5X16.00 | 22.5-25.5 500/45-22.5 500/60R22.5 550/45-22.5 550/60-22.5 | ||
| 22.5X20.00 | 600/50-22.5, 600/55-22.5 650-50-22.5 | ||
| 22.5X24.00 | 700/40-22.5 750/45-22.5 | ||
| 24.5" | one-piece 15° DC | 24.5X8.25 | 11R24.5 |
| 24.5X11.75 | 385/55R24.5 385/55R24.5 | ||
| 24.5X13.00 | 16.5R24.5 425/65R24.5 | ||
| 24.5X15.00 | |||
| 26.5" | one-piece 15° DC | 26.5X20.00 | 600/55-26.5 |
| 26.5X24.00 | 700/50-26.5 750/45-26.5 | ||
| 26.5X28.00 | 800/45-26.5 | ||
| 30.5" | one-piece 15° DC | 30.5X20.00 | 650/65-30.5 |
| 30.5X24.00 | 750/60-30.5 | ||
| 30.5X28.00 | 850/50-30.5 |
